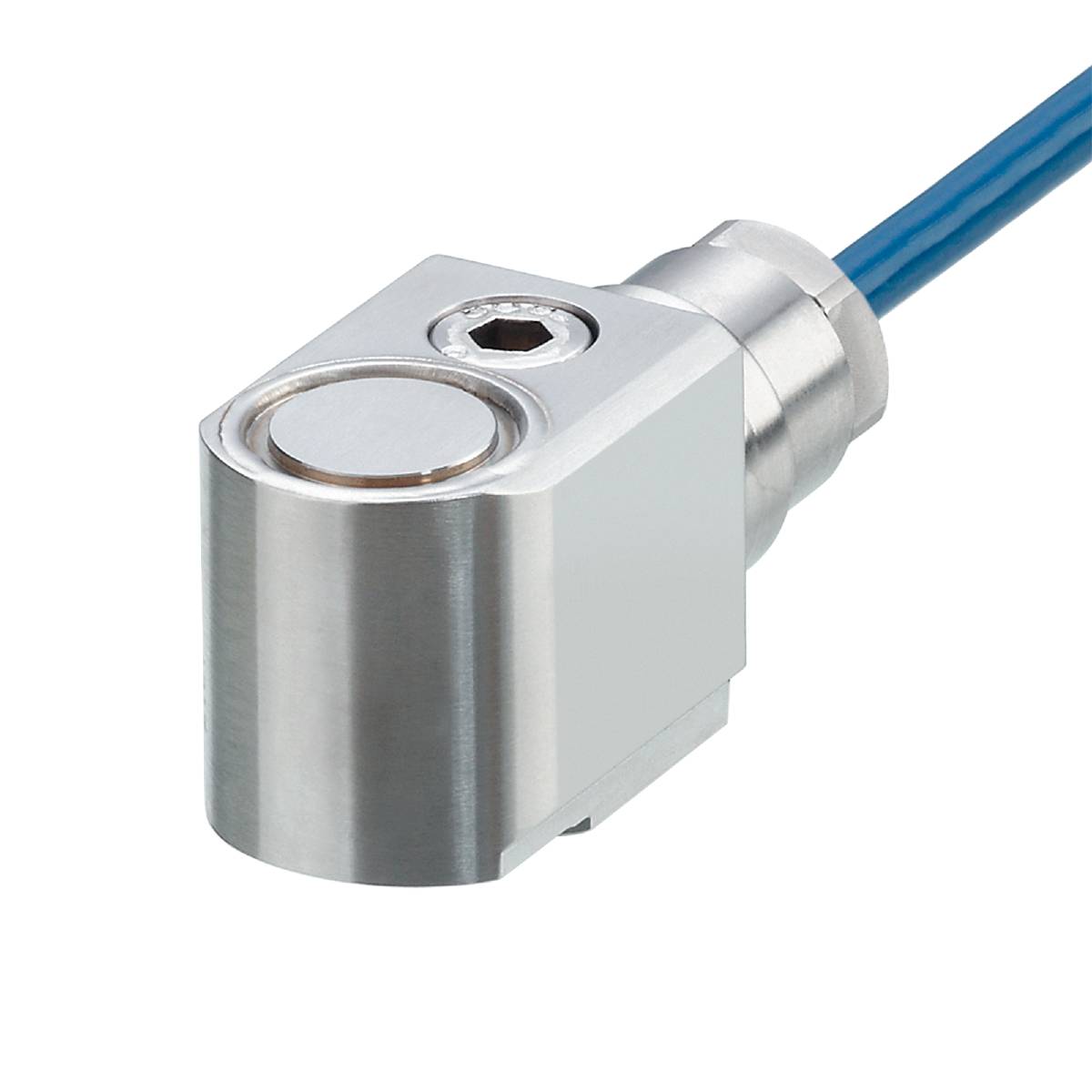

Buy ifm Electronic Acceleration sensor VSP01A VSP01A Cable, open end

Image similar

Product type

Acceleration sensor

Max. operating voltage

12 V DC

Outputs

Analogue

Connector

Cable, open end

IP rating

IP68

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For applications in areas where there is a risk of explosion
Protection against permanent machine overload and unplanned downtime
For connection to a diagnostic electronics for vibration sensors
Large operating temperature range and high protection class for the requirements of harsh industrial ambient
Compact and robust stainless steel housing with high mechanical overload resistance

Dimensions [mm] 30 x 25.5 x 64.7
Number of measuring axles: 1
Diagnostics measuring principle: Piezoelectric
Ambient temperature-1 [°C]: -55...90
Tightening torque [Nm]: 8
ATEX Device Identification: II 1G Ex ia IIC T4 Ga (-55 << °C Ta +90°C); II 1D Ex ia IIIC T110°C IP65 Da (-55°C < Ta < +90 << °C << ); II 1G Ex ia IIC T6 Ga (-60°C Ta +60°C); II 1D Ex ia IIIC T80°C IP65 Da (-55°C Ta +55°C)
Design: For connection to external diagnostic electronics VSExxx
Operating voltage [V]: 10... 12 DC
Sensitivity [mV/g]: 100
Frequency range [Hz]: 2...10000
Weight [g]: 668,500
Cable: 10 m, PUR
Short-circuit protection: Yes
Storage temperature [°C]: -55...90
Max. Burden [Ω]: 200
Max. Cross sensitivity [%]: 5
Measuring range vibration [g]: -50...50
Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
Minimum measurement time [s]: 2
M8 x 1.25 installation
Noise Density [mg]: 0.1
Switching amplifier: Connection to intrinsically safe isolation (Ex ia)
Protection class: IP 68; (waterproof up to 100 m 10 bar; restriction for 1D application: IP 65)
Protection class III
Current consumption: 0.5...8
Overload-proof: Yes
Polarity reversal protected: Yes
Approval: Baseefa12ATEX0248X; IECEx BAS 12.0133 X.
