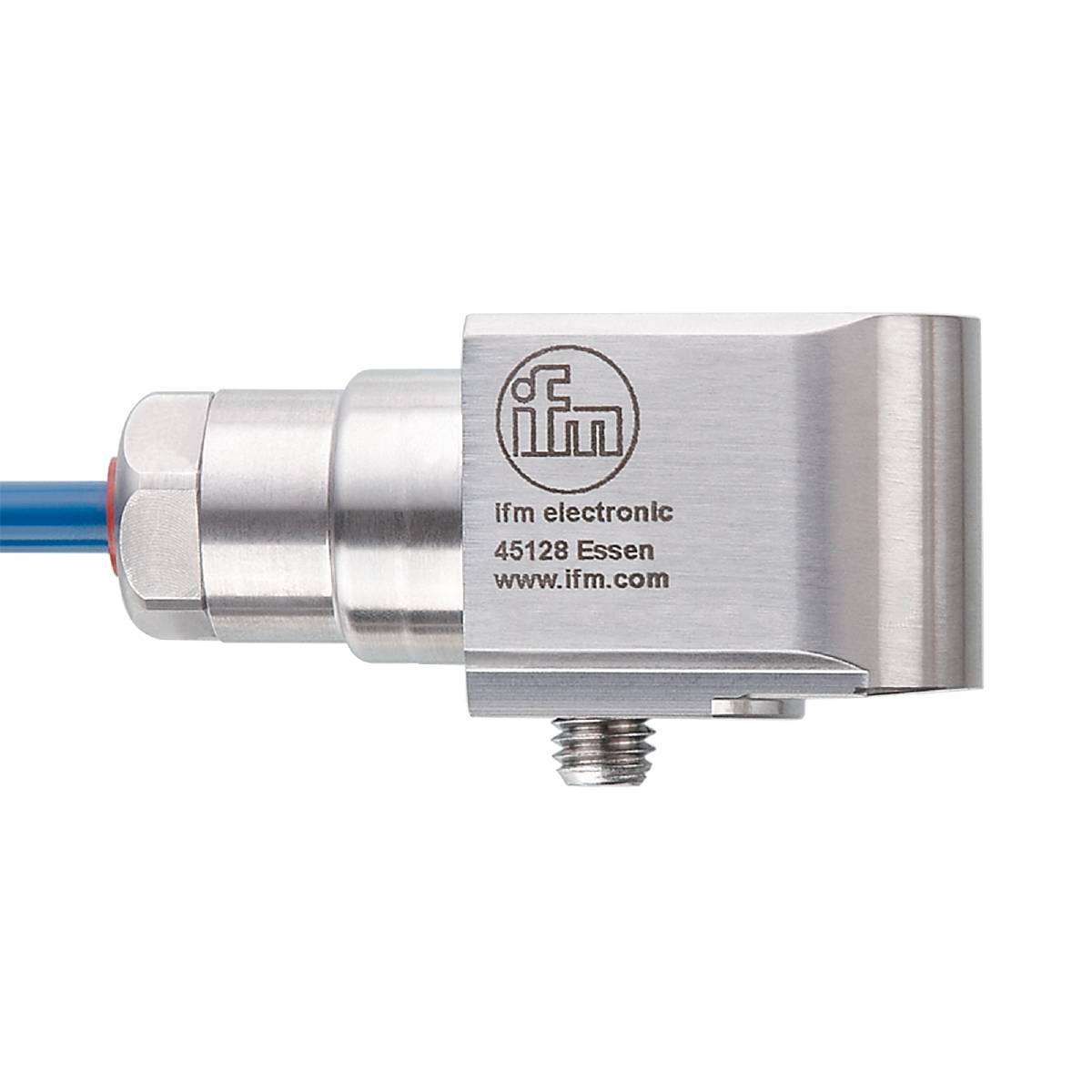

ifm Electronic Acceleration sensor VSP02A VSP02A open ends Cable, open end
EAN:
Part number:
Item no:
Product type
Acceleration sensor
Max. operating voltage
12 V DC
Connector
Cable, open end
IP rating
IP68
Type
VSP02A
Datasheet (PDF)
Highlights & Details
Ifm VSP02A acceleration sensor
- For applications in areas where there is a risk of explosion
- Protection against permanent machine overload and unplanned downtime
- For connection to a diagnostic electronics for vibration sensors
- Large operating temperature range and high protection class for the requirements of harsh industrial ambient
- Compact and robust stainless steel housing with high mechanical overload resistance
Technical specifications
- Dimensions [mm] 30 x 25.5 x 64.7
- Number of measuring axles: 1
- Diagnostics measuring principle: Piezoelectric
- Ambient temperature-1 [°C]: -55...90
- Tightening torque [Nm]: 8
- ATEX equipment identification I M1 Ex ia I Ma (-55°C < Ta < +90°C)
- Design: For connection to external diagnostic electronics VSExxx
- Operating voltage [V]: 10... 12 DC
- Sensitivity [mV/g]: 100
- Frequency range [Hz]: 2...10000
- Weight [g]: 669,000
- Cable: 10 m, PUR
- Short-circuit protection: Yes
- Storage temperature [°C]: -55...90
- Max. Burden [Ω]: 200
- Max. Cross sensitivity [%]: 5
- Measuring range vibration [g]: -50...50
- Minimum measurement time [s]: 2
- M8 x 1.25 installation
- Noise Density [mg]: 0.1
- Switching amplifier: Connection to intrinsically safe isolation (Ex ia)
- Protection class IP 68; (1D application IP 65)
- Protection class III
- Current consumption: 0.5...8
- Overload-proof: Yes
- Polarity reversal protected: Yes
- Approval: Baseefa12ATEX0247; IECEx BAS 12.0132
- Product type
Acceleration sensor
- Type
VSP02A
- Min. operating voltage
10 V DC
- Max. operating voltage
12 V DC
- Operating voltage
10 - 12 V DC
- No. of axles
1
- Connector
Cable, open end
- Cable length
10 m
- Enclosure material
Stainless steel
- Mounting type
Screw fastening
- Interfaces
open ends
- Min. temperature
-55 °C
- Max. temperature
90 °C
IP68
- Length
30 mm
- Width
25.5 mm
- Height
64.7 mm
- Content
1 pc(s)
- UKCA
not relevant
