Buy ifm Electronic AL1103 AL1103 Sensor & actuator box (active) Multi splitter 1 pc(s)

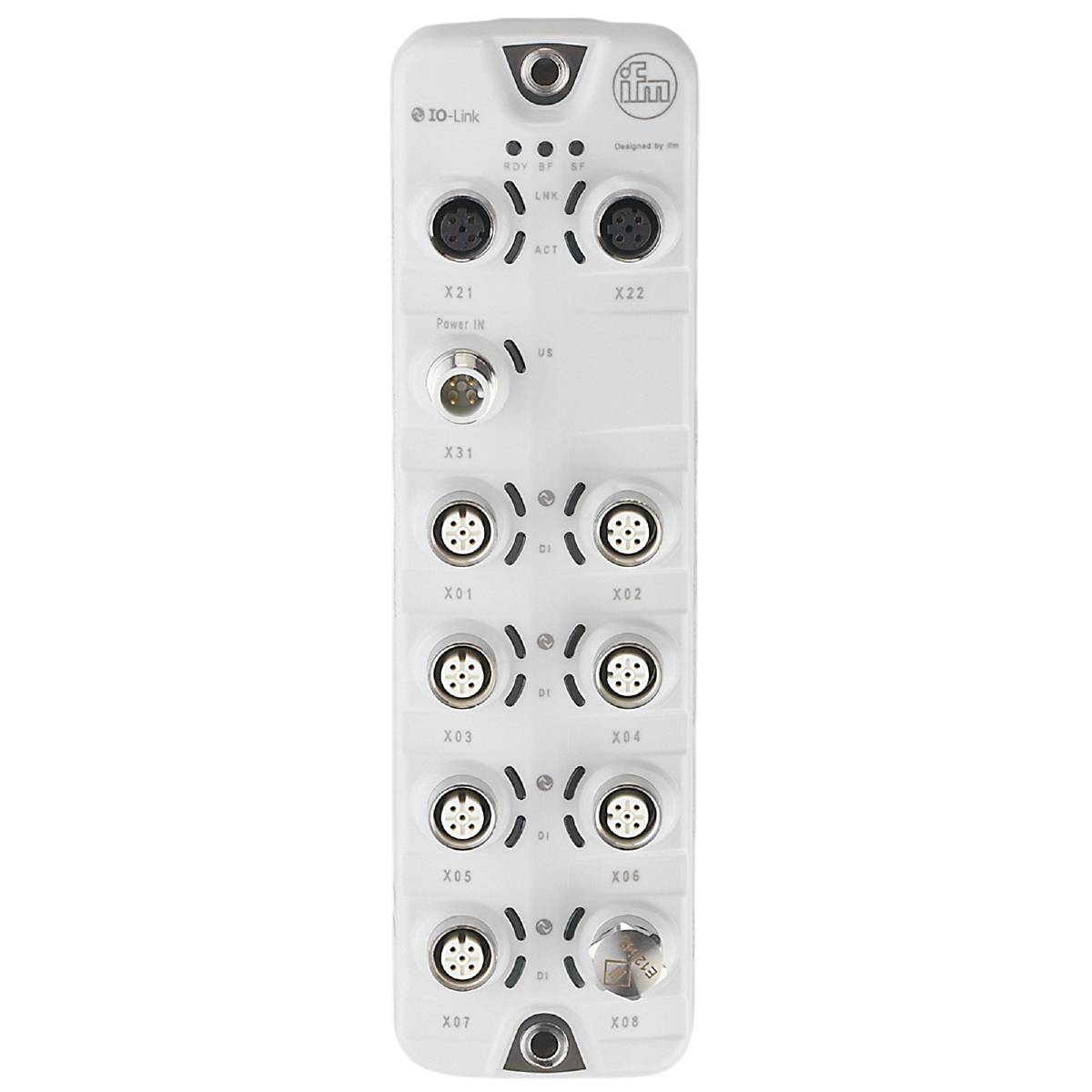

'Industrial IO-Link module with eight ports, LED indicators on top, robust design for industrial automation applications.'

Image similar

Product type

Sensor & actuator box (active)

Type

AL1103

IP rating

IP65

IP66

IP67

IP69K

Max. temperature

60 °C

Min. temperature

-25 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AL1103 IO-Link-Master standard line

Reliable transmission of machine data, process parameters and diagnostic data to the controller
With integrated PROFINET interface
High protection class for the requirements of the food and drink industry
For connecting up to eight IO-Link devices

Technical specifications

Number of digital outputs: 8; (IO-Link Port Class A: 8 x 1)
Number of digital inputs: 16; (IO-Link Port Class A: 8 x 2)
Number of inputs and outputs: Number of digital inputs: 16; number of digital outputs: 8
Number of ports Class A - IO-Link Master: 8
Ambient temperature-1 [°C]: -25...60
Application: Hygiene range; I/O modules for field use
Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
Loop-through function: Field-bus interface
Total number of inputs and outputs: 16; (configurable)
Weight [g]: 410,000
IO-Link revision - IO-Link Master: 1.1
Communication interface: Ethernet; IO-Link
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90
MTTF: 78
Protocol - Ethernet - PROFINET: PROFINET
Switching level HIGH [V]: 11...30
Switching level Low [V]: 0...5
Protection class IP 65; IP 66; IP 67; IP 69K; (Operation with stainless steel caps: IP 69K)
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: EPDM / Ethernet - Pin layout: 0191 - Plug connection: M12; Coding: D; Seal: EPDM / Voltage supply - Pin layout: 0001 - Plug connection: M12; Coding: A
Current consumption: 300...3900 (US)
Total Current Load - Sensor Supply_US [A]: 3.6
Power rating per output [mA]: 300
Transfer rate - Ethernet - PROFINET: 100 Mbit/s.
Transmission standard - Ethernet - PROFINET: 100Base-TX
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Pollution level: 2
Material seal: EPDM
