Buy ifm Electronic AL1123 AL1123 Sensor & actuator box (active) Multi splitter 1 pc(s)

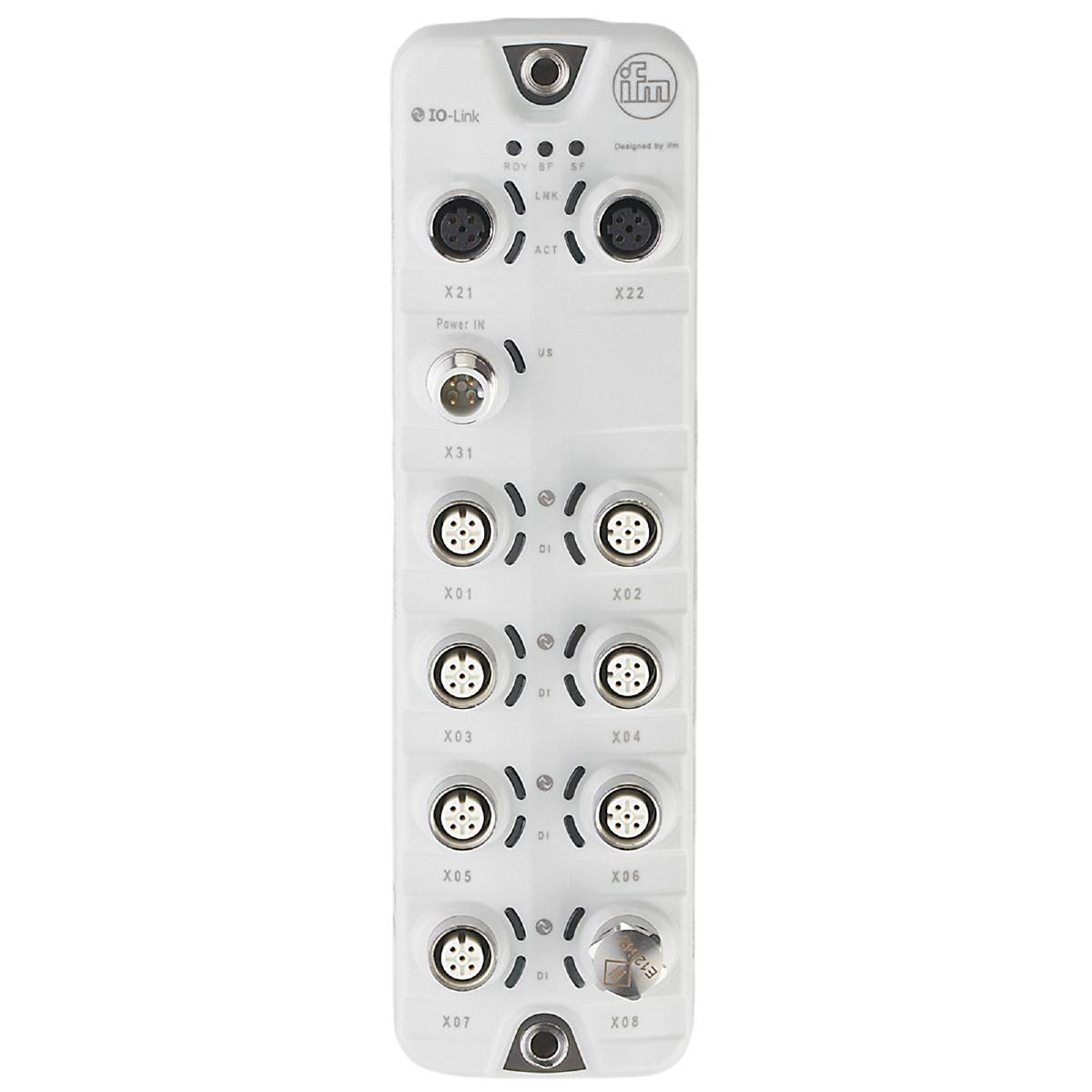

Pictured is an industrial IO-Link master module with multiple round connector interfaces for connecting sensors and actuators.

Image similar

Product type

Sensor & actuator box (active)

Type

AL1123

IP rating

IP65

IP66

IP67

IP69K

Max. temperature

60 °C

Min. temperature

-25 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AL1123 IO-Link-Master standard line

Reliable transmission of machine data, process parameters and diagnostic data to the controller
With integrated Ethernet/IP interface
High protection class for the requirements of the food and drink industry
For connecting up to eight IO-Link devices

Technical specifications

Number of digital outputs: 8; (IO-Link Port Class A: 8 x 1)
Number of digital inputs: 16; (IO-Link Port Class A: 8 x 2)
Number of inputs and outputs: Number of digital inputs: 16; number of digital outputs: 8
Number of ports Class A - IO-Link Master: 8
Ambient temperature-1 [°C]: -25...60
Application: Hygiene range; I/O modules for field use
Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
Loop-through function: Field-bus interface
Total number of inputs and outputs: 16; (configurable)
Weight [g]: 409,000
IO-Link revision - IO-Link Master: 1.1
Communication interface: Ethernet; IO-Link
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90
MTTF: 78
Protocol - Ethernet - Ethernet/IP: Ethernet/IP
Switching level HIGH [V]: 11...30
Switching level Low [V]: 0...5
Protection class IP 65; IP 66; IP 67; IP 69K; (Operation with stainless steel caps: IP 69K)
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: EPDM / Ethernet - Pin layout: 0191 - Plug connection: M12; Coding: D; Seal: EPDM / Voltage supply - Pin layout: 0001 - Plug connection: M12; Coding: A
Current consumption: 300...3900 (US)
Total Current Load - Sensor Supply_US [A]: 3.6
Power rating per output [mA]: 300
Transfer rate – Ethernet – Ethernet/IP: 10 Mbit/s; 100 Mbit/s.
Transmission standard - Ethernet - Ethernet/IP: 10Base-T; 100Base-TX
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Pollution level: 2
Material seal: EPDM
