Buy ifm Electronic AL1220 AL1220 Sensor & actuator box (active) Multi splitter 1 pc(s)

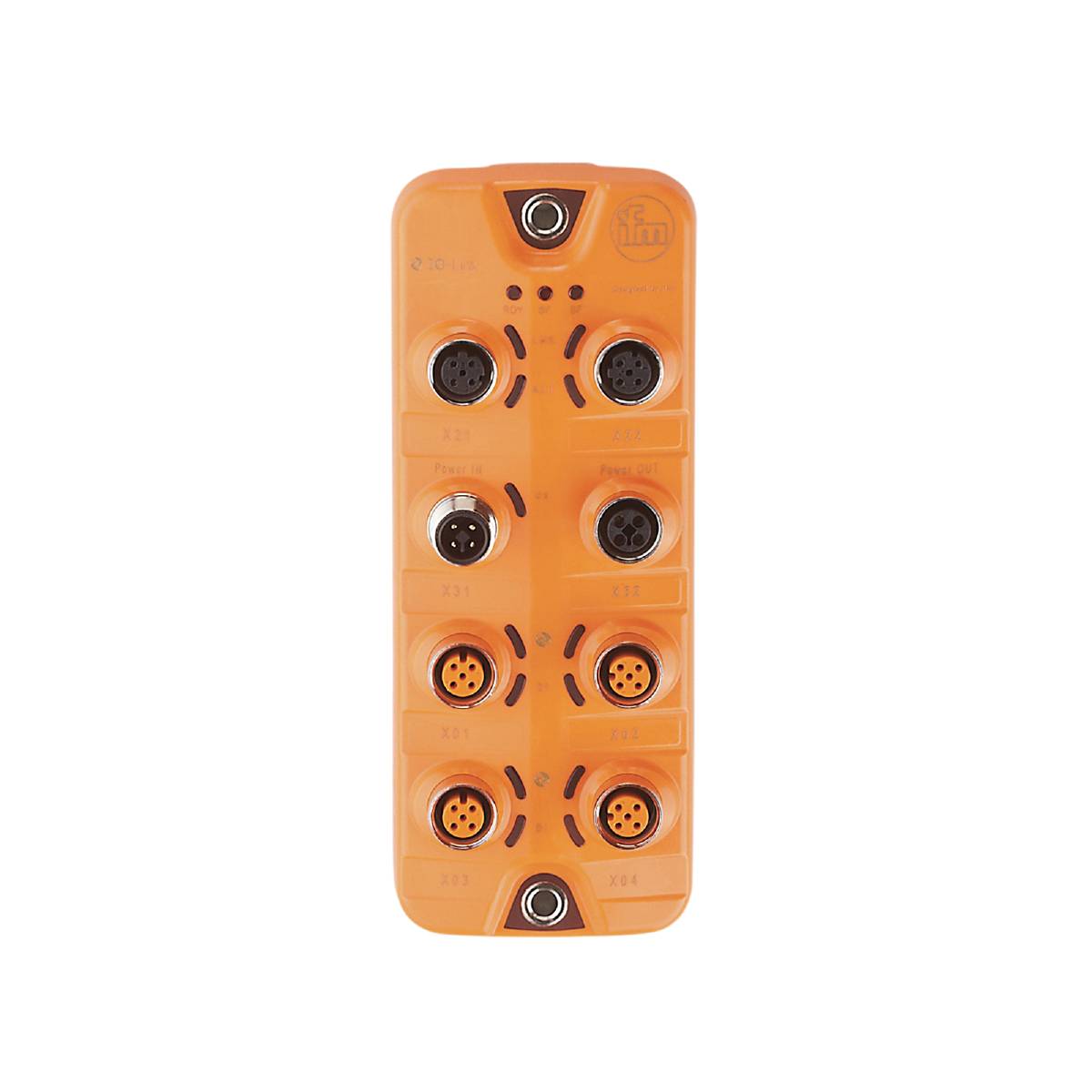

An orange electronic multi-socket power strip designed for industrial applications to connect multiple cables.

Image similar

Product type

Sensor & actuator box (active)

No. of splitters

4-way

Type

AL1220

Connection

M12 socket

IP rating

IP65

IP66

IP67

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AL1220 IO-Link Master Powerline

Reliable transmission of machine data, process parameters and diagnostic data to the controller
With integrated Ethernet/IP interface
For connecting up to four IO-Link devices

Technical specifications

Number of digital outputs: 4; (IO-Link Port Class A: 4 x 1)
Number of digital inputs: 8; (IO-Link Port Class A: 4 x 2)
Number of inputs and outputs: Number of digital inputs: 8; number of digital outputs: 4
Number of ports Class A - IO-Link Master: 4
Ambient temperature-1 [°C]: -25...60
Application: I/O modules for field use
Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
Loop-through function: Power supply; field bus interface
Total number of inputs and outputs: 8; (configurable)
Weight [g]: 324,530
IO-Link revision - IO-Link Master: 1.1
Communication interface: Ethernet; IO-Link
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90
MTTF: 101
Protocol - Ethernet - Ethernet/IP: Ethernet/IP
Switching level HIGH [V]: 11...30
Switching level Low [V]: 0...5
PROTECTION CLASS IP 65; IP 66; IP 67
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: FKM / Ethernet - Pin layout: 0191 - Plug connection: M12; Coding: D; Seal: FKM / Voltage supply IN - Pin layout: 0183 - Plug connection: M12; Coding: T / Voltage supply OUT - Pin layout: 0182 - Plug connection: M12; Coding: T; Seal: FKM
Current consumption: 300...3900 (US)
Total Current Load - Sensor Supply_US [A]: 3.6
Power rating per output [mA]: 300
Transfer rate – Ethernet – Ethernet/IP: 10 Mbit/s; 100 Mbit/s.
Transmission standard - Ethernet - Ethernet/IP: 10Base-T; 100Base-TX
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Pollution level: 2
Material seal: FKM
