Buy ifm Electronic AL1332 AL1332 Sensor & actuator box (active) Multi splitter 1 pc(s) Single

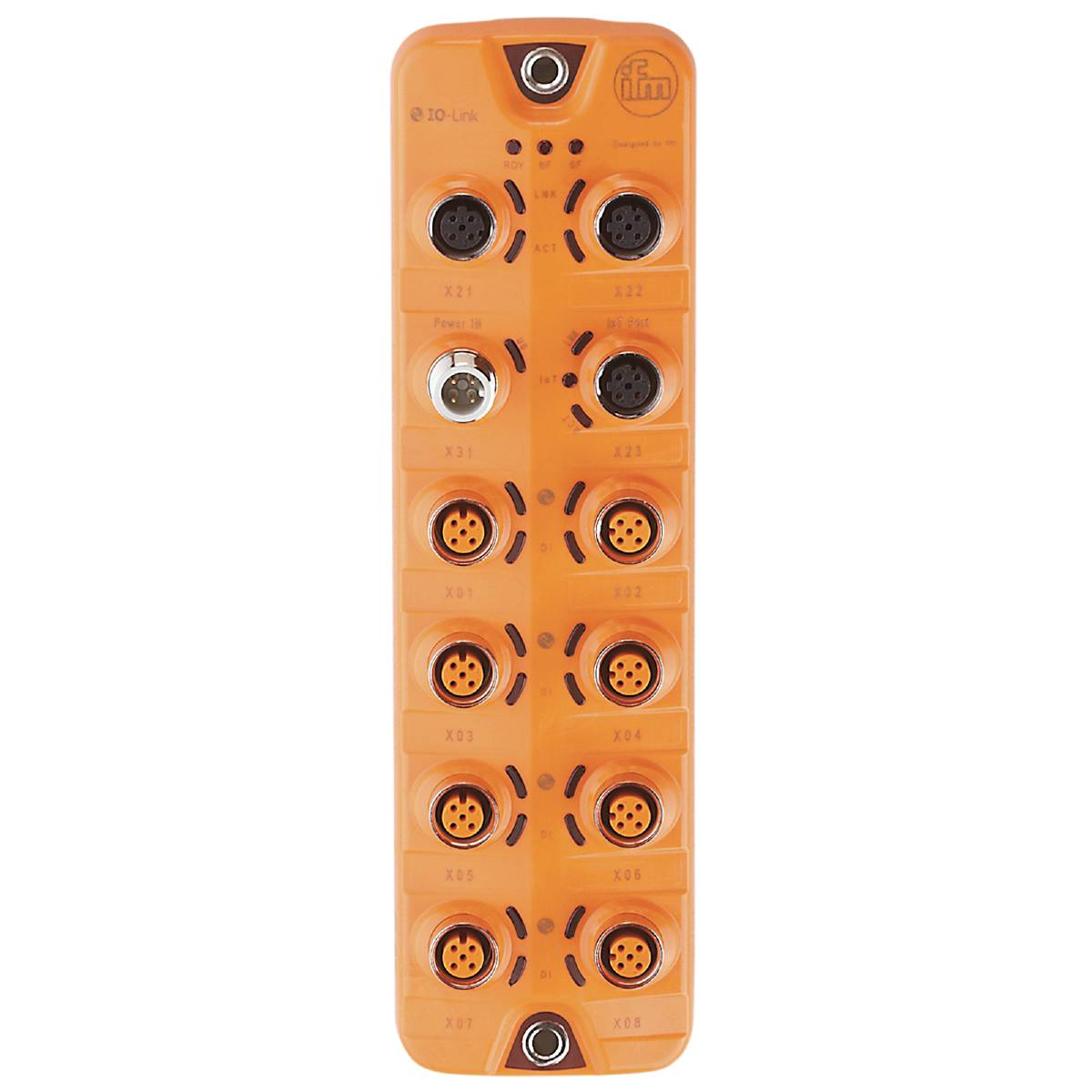

An orange sensor interface module with multiple connectors, suitable for industrial sensor integration applications.

Image similar

Packaging type

Single

Product type

Sensor & actuator box (active)

No. of signal spaces

No. of splitters

8-way

Type

AL1332

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AL1332 IO-Link-Master Dataline

Separation between automation and IT network
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With EtherCAT and separate MQTT JSON interface
Robust housing for use in rough industrial environment
For connecting up to eight IO-Link devices

Technical specifications

Number of digital outputs: 8; (IO-Link Port Class A: 8 x 1)
Number of digital inputs: 16; (IO-Link Port Class A: 8 x 2)
Number of inputs and outputs: Number of digital inputs: 16; number of digital outputs: 8
Number of ports Class A - IO-Link Master: 8
Ambient temperature-1 [°C]: -25...60
Application: I/O modules for field use
Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
Loop-through function: Field-bus interface
Total number of inputs and outputs: 16; (configurable)
Weight [g]: 404,000
IO-Link revision - IO-Link Master: 1.1
Communication interface: Ethernet; IO-Link
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90
MTTF: 78
Protocol - Ethernet - EtherCAT: EtherCAT
Protocol - Ethernet - Internet of Things: MQTT JSON
Switching level HIGH [V]: 11...30
Switching level Low [V]: 0...5
PROTECTION CLASS IP 65; IP 66; IP 67
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: FKM / Ethernet - Pin layout: 0191 - Connector: M12; Coding: D; Seal: FKM / voltage supply - Pin layout: 0001 - Connector: M12; Coding: A.
Current consumption: 300...3900 (US)
Total Current Load - Sensor Supply_US [A]: 3.6
Power rating per output [mA]: 300
Transfer rate - Ethernet - EtherCAT 100 MBit/s
Transfer rate – Ethernet – Internet of Things 10 Mbit/s; 100 Mbit/s.
Transmission standard - Ethernet - EtherCAT: 100Base-TX
Transfer standard - Ethernet - Internet of Things: 10Base-T; 100Base-TX
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Pollution level: 2
Material seal: FKM
