Buy ifm Electronic AL1402 AL1402 Sensor & actuator box (active) Multi splitter 1 pc(s)

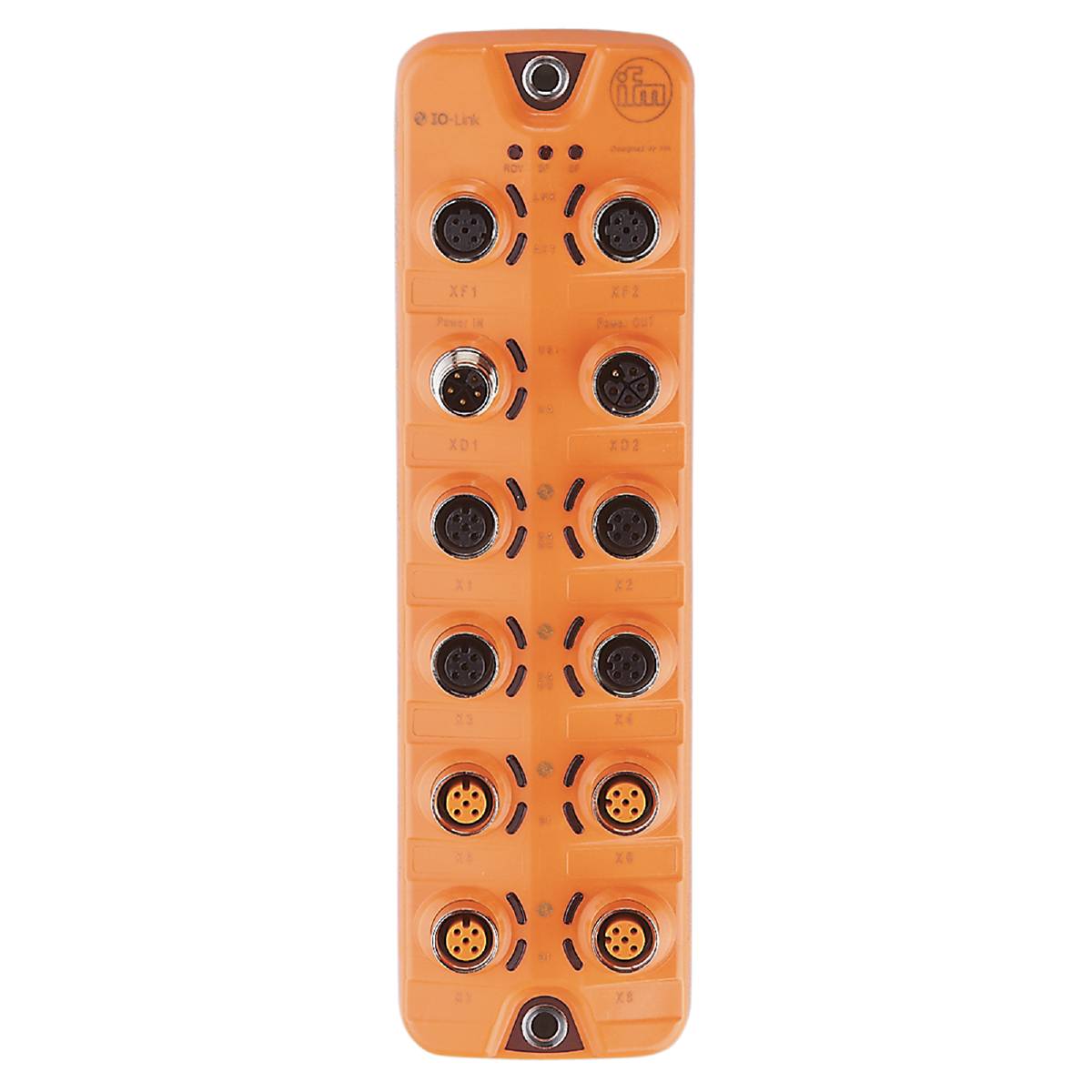

An orange multi-pole connection module with several round connectors arranged in a symmetrical configuration.

Image similar

Product type

Sensor & actuator box (active)

Type

AL1402

IP rating

IP65

IP66

IP67

Max. power rating per slot

2 A

Max. temperature

60 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AL1402 IO-Link Master performance line

Daisy-chain power supply with standardized L-coded M12 connection technology
Adjustable current limit per port for the safe operation
Voltage and current measurement per port for energy monitoring
Connection of actuators up to 2 A possible
IO-Link Master developed in accordance with AIDA requirements of the automobile manufacturer

Technical specifications

Number of digital outputs: 12; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2)
Number of digital inputs: 12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1)
Number of inputs and outputs: Number of digital inputs: 12; number of digital outputs: 12
Number of ports Class A - IO-Link Master: 4
Number of ports Class B - IO-Link Master: 4
Ambient temperature-1 [°C]: -25...60
Application: I/O modules for field use
Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
Loop-through function: Power supply; field bus interface
Total number of inputs and outputs: 16; (configurable)
Weight [g]: 412,100
IO-Link revision - IO-Link Master: 1.1
Communication interface: Ethernet; IO-Link
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90
MTTF: 43
Protocol - Ethernet - PROFINET: PROFINET
Switching level HIGH [V]: 11...30
Switching level Low [V]: 0...5
PROTECTION CLASS IP 65; IP 66; IP 67
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: FKM / Ethernet - Pin layout: 0191 - Plug connection: M12; Coding: D; Seal: FKM / Voltage supply IN - Pin layout: 0210 - Plug connection: M12; Coding: L / Voltage supply OUT - Pin layout: 0211 - Plug connection: M12; Coding: L; Seal: FKM
Current consumption: 300...3900 (US)
Current rating total - actuator supply_UA [A]: 8
Total Current Load - Sensor Supply_US [A]: 3.6
Current rating per output - actuator supply_UA [mA]: 2000
Current rating per output - Sensor supply_US [mA]: 2000
Current carrying capacity per port - Actuator supply_UA [A]: 2; (adjustable: 0...2; factory setting: 2)
Current carrying capacity per port - Sensor supply_US [A]: 2; (adjustable: 0...2; factory setting: 0.45)
Transfer rate - Ethernet - PROFINET: 100 Mbit/s.
Transmission standard - Ethernet - PROFINET: 100Base-TX
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Pollution level: 2
Material seal: FKM
Additional power supply [V]: 20...30 DC; (UA)
