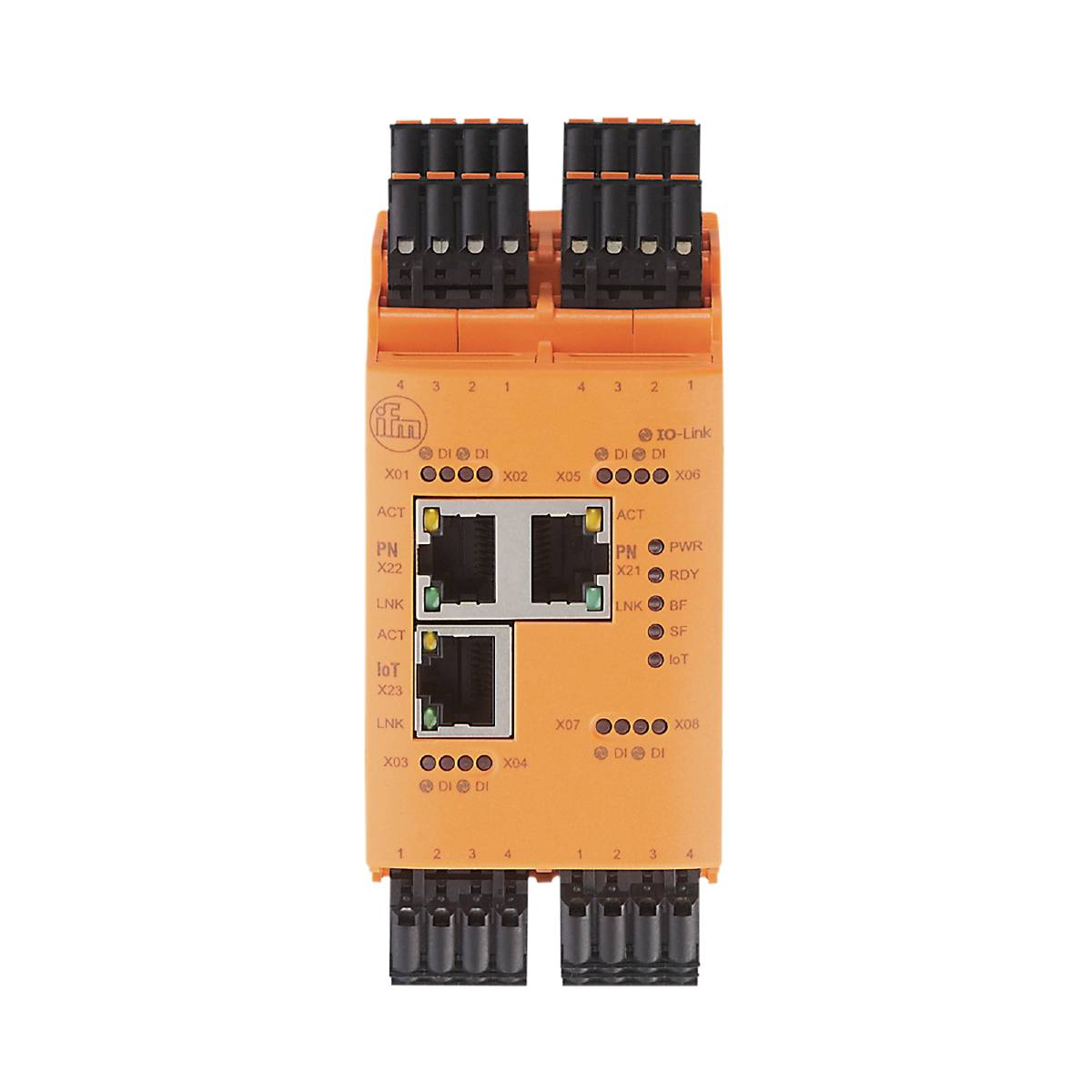

ifm Electronic AL1900 AL1900 IO module RJ45 plug No. of digital outputs: 8 No. of digital inputs: 8
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
RJ45 plug
Type
AL1900
No. of digital inputs
8
No. of digital outputs
8
Datasheet (PDF)
Highlights & Details
Ifm AL1900 IO-Link-Master cabinet line
- Separation between automation and IT network
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With PROFINET and separate MQTT JSON interface
- Narrow, space-saving housing for control cabinet installation
- For connecting up to eight IO-Link devices
Technical specifications
- Number of digital outputs: 8; (IO-Link Port Class A)
- Number of digital inputs: 8; (IO-Link Port Class A)
- Number of inputs and outputs: Number of digital inputs: 8; number of digital outputs: 8
- Number of ports Class A - IO-Link Master: 8
- Ambient temperature-1 [°C]: -25...65
- Application: I/O modules for use in control cabinets
- Operating voltage [V]: 20...30 DC (US ; according to SEL/PEL)
- Total number of inputs and outputs: 16; (configurable)
- Weight [g]: 330,000
- IO-Link revision - IO-Link Master: 1.1
- Communication interface: Ethernet; IO-Link
- Short-circuit-proof: Yes
- Short-circuit resistance of digital inputs: Yes
- Storage temperature [°C]: -25...85
- Max. Permissible relative humidity [%]: 90
- MTTF: 78
- Protocol - Ethernet - Internet of Things: MQTT JSON
- Protocol - Ethernet - PROFINET: PROFINET
- Switching level HIGH [V]: 11...30
- Switching level Low [V]: 0...5
- Protection class IP 20
- Protection class III
- Plug connection: Ethernet – pin layout: 0140 – connector: RJ45
- Current consumption: 300...3900 (US)
- Total Current Load - Sensor Supply_US [A]: 3.6
- Power rating per output [mA]: 300
- Transfer rate – Ethernet – Internet of Things 10 Mbit/s; 100 Mbit/s.
- Transfer rate - Ethernet - PROFINET: 100 Mbit/s.
- Transfer standard - Ethernet - Internet of Things: 10Base-T; 100Base-TX
- Transmission standard - Ethernet - PROFINET: 100Base-TX
- Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
- Product type
IO module
- Interfaces
RJ45 plug
- Type
AL1900
- No. of digital inputs
8
- No. of digital outputs
8
- Manufacturer part #
AL1900
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321531 ifm Electronic AL1900 AL1900 IO module RJ45 plug No. of digital outputs: 8 No. of digital inputs: 8
User & Safety Instructions
User & Safety Instructions 3321531 ifm Electronic AL1900 AL1900 IO module RJ45 plug No. of digital outputs: 8 No. of digital inputs: 8
Description
Ifm AL1900 IO-Link-Master cabinet line
