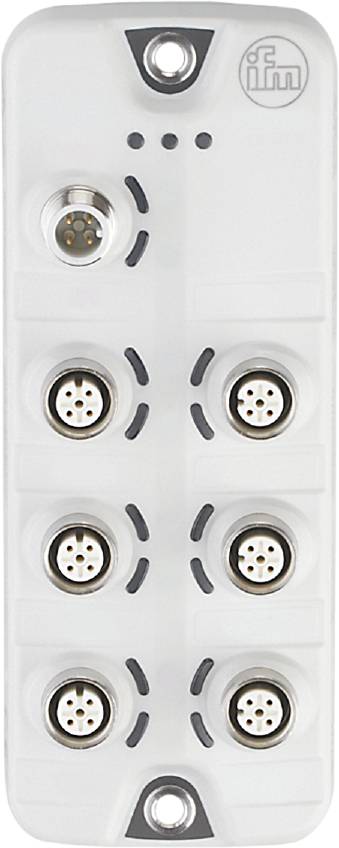

ifm Electronic AL2240 AL2240 GPI module M12 plug No. of digital inputs: 12
EAN:
Part number:
Item no:
Product type
GPI module
Interfaces
M12 plug
Type
AL2240
No. of digital inputs
12
Manufacturer part #
AL2240
Datasheet (PDF)
Highlights & Details
Ifm AL2240 IO-Link input module
- Pre-processing of the input signals by digital input filter
- High protection class for the requirements of the food and drink industry
- For the effective connection of binary sensors to IO-Link
- Expansion of IO-Link Master modules by up to 12 digital inputs
Technical specifications
- Number of digital inputs: 12; (6 x 2 PNP type 2 to IEC 61131-2)
- Number of inputs and outputs: Number of digital inputs: 12
- Display: Operation: 1 x LED, green; error: 1 x LED, red; function: 1 x LED, yellow
- IO-Link Revision: 1.1
- SDCI standard Master IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -25...60
- Required master port class: A
- Operating voltage [V]: 18... 30 DC
- Weight [g]: 300,000
- Communication interface: IO-Link
- Storage temperature [°C]: -25...70
- Max. Height above NN [m]: 2000
- Max. Permissible relative humidity [%]: 75; (5...75)
- Min Process cycle time [ms]: 4.3
- MTTF: 197
- Protection class IP 65; IP 67; IP 69K; (Operation with stainless steel caps: IP 69K)
- Protection class (NEMA 250) 6P
- Protection class III
- Sensor supply of inputs: IO-Link
- SIO mode: No.
- Power supply [V]: 16...30
- Plug connection: Inputs - pin layout: 0017 - plug connection: 6 x M12; coding: A; seal: EPDM / IO-Link - pin layout: 0001 - plug connection: 1 x M12; coding: A
- Current consumption: 100...700 (US)
- Current rating per port - Sensor supply_US [A]: 0.1
- Pollution level: 2
- Material seal: EPDM
- Product type
GPI module
- Interfaces
M12 plug
- Type
AL2240
- No. of digital inputs
12
- Manufacturer part #
AL2240
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320278 ifm Electronic AL2240 AL2240 GPI module M12 plug No. of digital inputs: 12
User & Safety Instructions
User & Safety Instructions 3320278 ifm Electronic AL2240 AL2240 GPI module M12 plug No. of digital inputs: 12
Description
Ifm AL2240 IO-Link input module
