Buy ifm Electronic AL2341 AL2341 GPI module M12 plug No. of digital inputs: 20

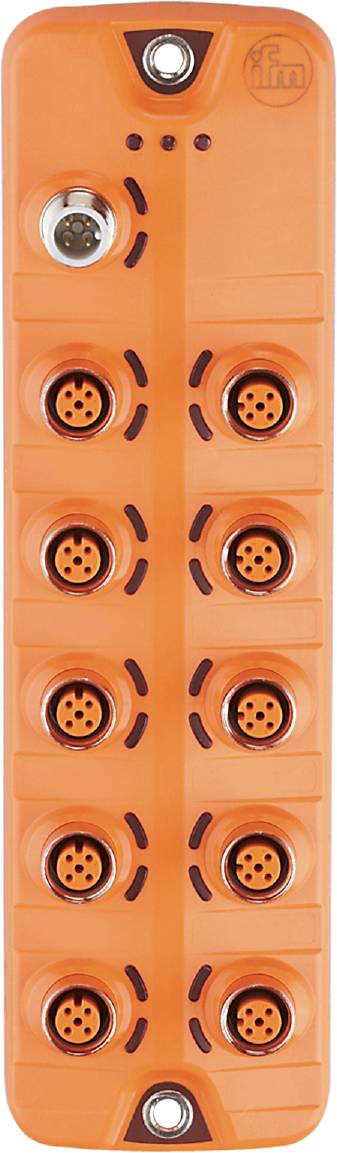

Image similar

Product type

GPI module

Interfaces

M12 plug

Type

AL2341

No. of digital inputs

Manufacturer part #

AL2341

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Number of digital inputs: 20; (10 x 2 PNP type 2 to IEC 61131-2)
Number of inputs and outputs: Number of digital inputs: 20
Display: Operation: 1 x LED, green; error: 1 x LED, red; function: 1 x LED, yellow
IO-Link Revision: 1.1
SDCI standard Master IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Required master port class: A
Operating voltage [V]: 18... 30 DC
Weight [g]: 392,500
Communication interface: IO-Link
Storage temperature [°C]: -25...70
Max. Height above NN [m]: 2000
Max. Permissible relative humidity [%]: 90
Min Process cycle time [ms]: 4.3
MTTF: 140
Protection class IP 65; IP 67
Protection class (NEMA 250) 6P
Protection class III
Sensor supply of inputs: IO-Link
SIO mode: No.
Power supply [V]: 16...30
Plug connection: Inputs - pin layout: 0017 - plug connection: 10 x M12; coding: A / IO-Link - pin layout: 0001 - plug connection: 1 x M12; coding: A
Current consumption: 100...1100 (US)
Current rating per port - Sensor supply_US [A]: 0.1
