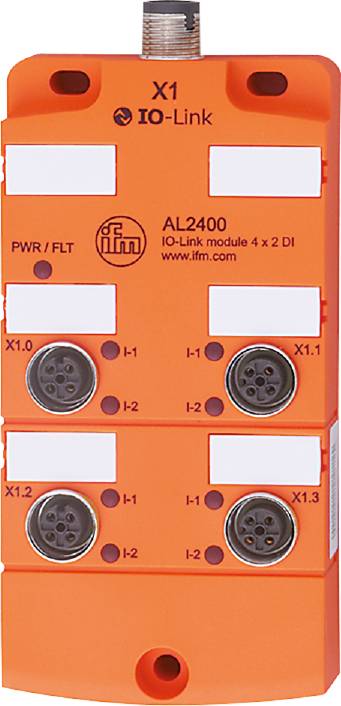

ifm Electronic AL2400 AL2400 GPI module M12 plug No. of digital inputs: 8
EAN:
Part number:
Item no:
Product type
GPI module
Interfaces
M12 plug
Type
AL2400
No. of digital inputs
8
Manufacturer part #
AL2400
Datasheet (PDF)
Highlights & Details
Ifm AL2400 IO-Link input module
- Data and power transmission is also possible with unshielded cable
- Highly visible LEDs for indication of operation, switch state and errors
- Four slots each with two binary inputs for eight sensors
- Robust design with full cast metal for use in harsh industrial environments
- For easy connection of binary sensors to any IO-Link Master
Technical specifications
- Number of digital inputs: 8; (4 x 2)
- Number of inputs and outputs: Number of digital inputs: 8
- Display: Operation: LED, green; error: LED, red; function: LED, yellow
- IO-Link Revision - IO-Link Device: 1.1
- SDCI standard - IO-Link device IEC 61131-9
- Transmission type - IO-Link Device: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -25...70
- Operating voltage [V]: 18...30 DC; ("supply class 2" according to cULus)
- Input connection digital inputs: PNP
- Input current High [mA]: 6...10
- Input current Low [mA]: 0...2
- Input current limit [mA]: 15
- Weight [g]: 300,000
- Communication interface: IO-Link
- Short-circuit resistance of digital inputs: Yes
- Min Process cycle time - IO-Link Device [ms]: 2.9
- Analog process data - IO-Link Device: 1
- Process data binary - IO-Link Device: 12
- Switching level HIGH [V]: > 11
- IP 67 protection
- Protection class (NEMA 250) 6P
- Sensor supply of inputs: IO-Link
- SIO mode - IO-Link Device: No.
- Plug connection: IO-Link - Pin layout: 0001 - Connector: M12; Coding: A / Process connection - Pin layout: 0017 - Connector: M12; Coding: A; Seal: FKM
- Current consumption: < 50
- Current rating per port - Sensor supply_US [A]: 0.1
- Material seal: FKM
- Product type
GPI module
- Interfaces
M12 plug
- Type
AL2400
- No. of digital inputs
8
- Manufacturer part #
AL2400
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319586 ifm Electronic AL2400 AL2400 GPI module M12 plug No. of digital inputs: 8
User & Safety Instructions
User & Safety Instructions 3319586 ifm Electronic AL2400 AL2400 GPI module M12 plug No. of digital inputs: 8
Description
Ifm AL2400 IO-Link input module
