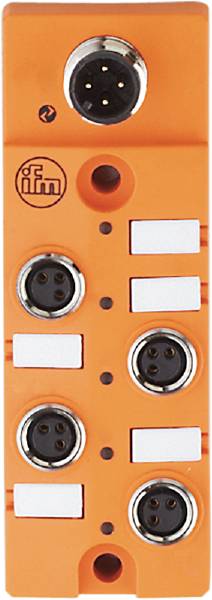

Buy ifm Electronic AL2410 AL2410 GPI module M12 plug, M8 plug No. of digital inputs: 4

Image similar

Product type

GPI module

Interfaces

M12 plug

M8 plug

Type

AL2410

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4
Display: Operation: LED, green; error: LED, red; function: LED, yellow
IO-Link Revision - IO-Link Device: 1.1
SDCI standard - IO-Link device IEC 61131-9
Transmission type - IO-Link Device: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...70
Operating voltage [V]: 18...30 DC; ("supply class 2" according to cULus)
Input connection digital inputs: PNP
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Input current limit [mA]: 15
Weight [g]: 105,500
Communication interface: IO-Link
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...85
Max. Permissible relative humidity [%]: 90; (non-condensing)
Min Process cycle time - IO-Link Device [ms]: 2.9
Process data binary - IO-Link Device: 32
Switching level HIGH [V]: > 11
IP 67 protection
Protection class (NEMA 250) 6P
SIO mode - IO-Link Device: No.
Plug connection: IO-Link - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A / Inputs - Pin layout: 0013 - Plug connection: 4 x M8; coding: A; seal: FKM
Current consumption: 50
Current rating per port - Sensor supply_US [A]: 0.1
Material seal: FKM
