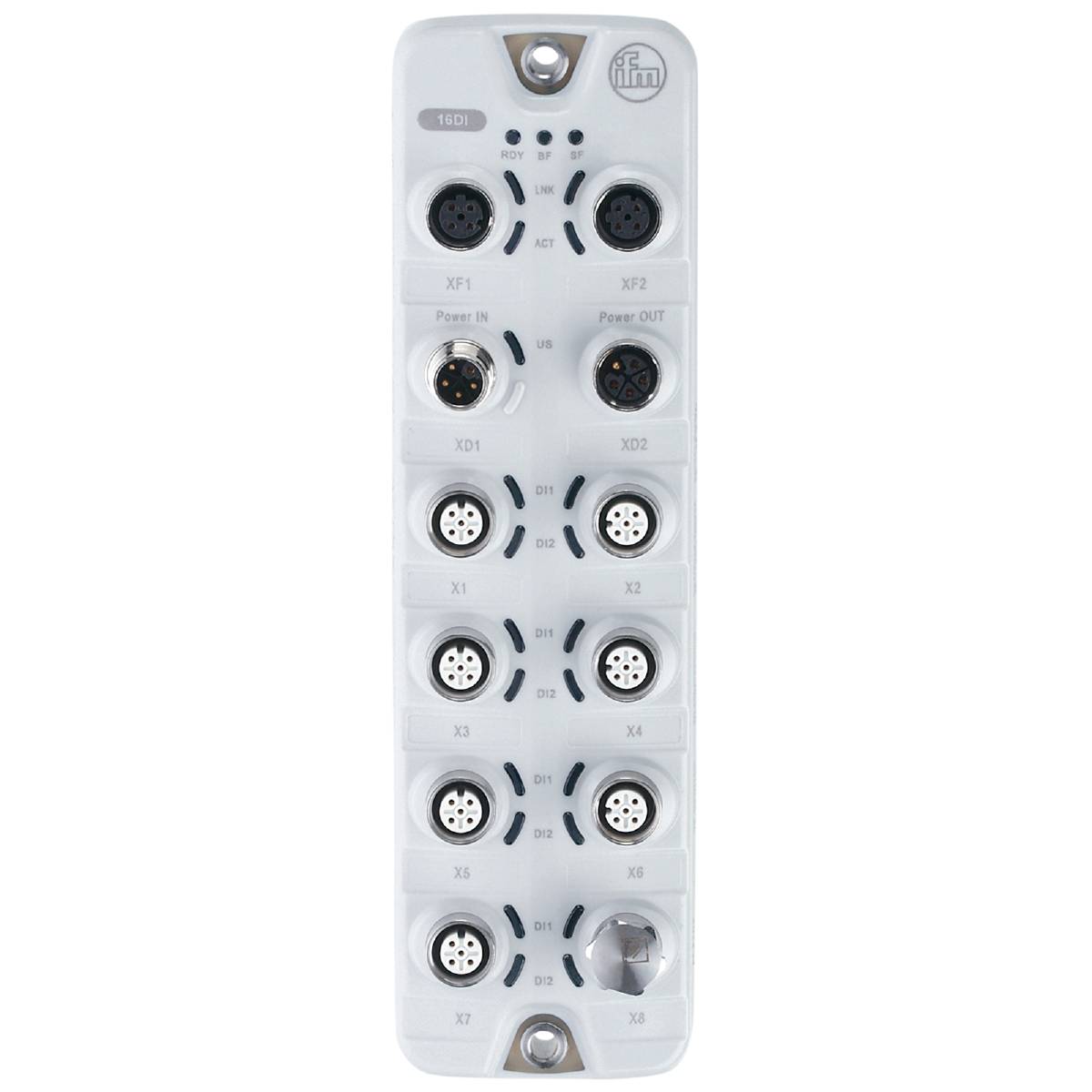

ifm Electronic AL4103 AL4103 Ethernet card Profinet No. of inputs: 16 x 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ifm AL4103 Ethernet module with PROFINET interface
- Field-bus module with digital inputs
- Direct connection of sensors to the fieldbus for a clear wiring structure
- High frequency counter function integrated in the Ethernet module
- Robust housing for use in the food industry
- High protection class for the requirements of the food and drink industry
Technical specifications
- Number of digital inputs: 16; (Type 2 according to IEC 61131-2)
- Number of inputs and outputs: Number of digital inputs: 16
- Ambient temperature-1 [°C]: -25...60
- Application: Hygiene range; I/O modules for field use
- Operating voltage [V]: 20...28 DC (US ; according to SEL/PEL)
- Loop-through function: Power supply; field bus interface
- Weight [g]: 437,200
- Communication interface: Ethernet
- Short-circuit resistance of digital inputs: Yes
- Storage temperature [°C]: -25...85
- Max. Permissible relative humidity [%]: 90
- MTTF: 129
- Parameterisation options: Counter function
- Protocol - Ethernet - PROFINET: PROFINET
- Switching level HIGH [V]: 11...30
- Switching level Low [V]: 0...5
- Protection class IP 65; IP 66; IP 67; IP 69K; (Operation with stainless steel caps: IP 69K)
- Protection class (NEMA 250) 6P
- Protection class III
- Plug connection: Process connection - Pin layout: 0017 - Plug connection: M12; Coding: A; Seal: EPDM / Ethernet - Pin layout: 0191 - Plug connection: M12; Coding: D; Seal: EPDM / Voltage supply IN - Pin layout: 0210 - Pin layout: M12; Coding: L / Voltage supply OUT - Pin layout: 0211 - Plug connection: M12; Coding: L; Seal: EPDM
- Current consumption [mA]: 200...3900; (cULus: 200 ... 3500; US)
- Current carrying capacity total [A]: 3.6
- Current carrying capacity total (UL) [A]: 3.2
- Transfer rate - Ethernet - PROFINET: 100 Mbit/s.
- Transmission standard - Ethernet - PROFINET: 100Base-TX
- Pollution level: 2
- Material seal: EPDM
- Product type
Ethernet card
- Interfaces
Profinet
- Type
AL4103
- Min. operating temperature
-25 °C
- Operating temperature
-25 °C (min)
- No. of inputs
16 x
- Max. current consumption
3900 mA
- Manufacturer part #
AL4103
- Interfaces
Ethernet
- Connection A
M12
- Min. operating voltage
20 V DC
- Max. operating voltage
28 V DC
- Max. temperature
60 °C
- Min. temperature
-25 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321273 ifm Electronic AL4103 AL4103 Ethernet card Profinet No. of inputs: 16 x 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321273 ifm Electronic AL4103 AL4103 Ethernet card Profinet No. of inputs: 16 x 1 pc(s)
Description
Ifm AL4103 Ethernet module with PROFINET interface
