Buy ifm Electronic ANT434 Write/read head ANT434 1 pc(s)

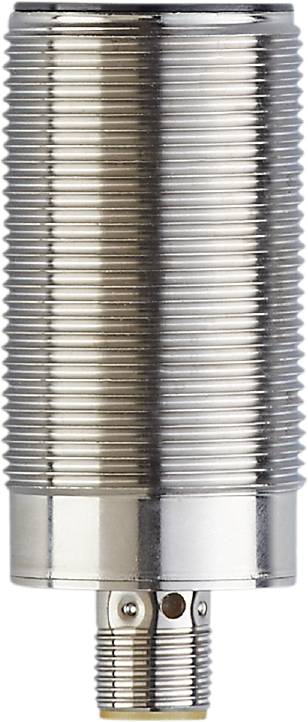

Image similar

Product type

Write/read head

Type

ANT434

Min. operating voltage

19.2 V DC

Max. operating voltage

28.8 V DC

Operating voltage

19.2 - 28.8 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For the reliable identification of ID tags on workpiece carriers and products
Robust stainless steel housing for the application in the assembly, feeding and handling technology
Suitable for use with RFID-antenna adapter for increasing the range
RFID RF read/write head for flush mounting
For connection to LF/HF RFID evaluation units through proven M12 connector

Dimensions [mm] M30 x 1.5 / L = 70
Distance from the read/write head [mm]: 100
Read/write head spacing [mm]: 50
Display: Operation: 1 x LED, green; tag communication: 1 x LED, yellow
Ambient temperature-1 [°C]: -20...60
Application: Detection of objects on transport equipment
Operating frequency [MHz]: 13.56
Operating voltage [V]: 19.2...28.8 DC; (supplied only by evaluation unit DTE10x (according to EN 60950-1))
Flush mounting type: Flush mounting
Radio approval for: USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine
Cylindrical housing
Weight [g]: 211,500
Thread name M30 x 1.5
Communication interface: DATA / DTE10x
Storage temperature [°C]: -25...80
Test mark (special cases): CCC
RFID-Standard ISO 15693
PROTECTION CLASS IP 67; IP 69K
Protection class III
Plug connection: Pin layout: 0061 - plug connection: 1 x M12; coding: A.
Current consumption: < 50
