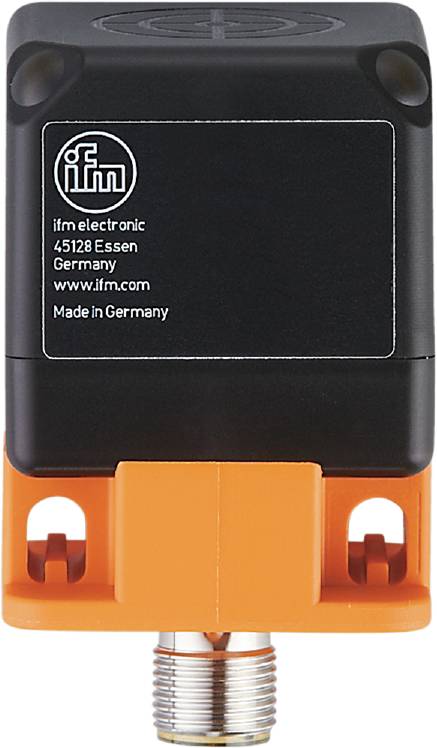

ifm Electronic ANT512 Write/read head ANT512 1 pc(s)
EAN:
Part number:
Item no:
Product type
Write/read head
Type
ANT512
Max. operating voltage
24 V DC
Operating voltage
24 V DC (max)
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Ifm ANT512 read/write head
- For the reliable identification of ID tags on workpiece carriers and products
- Robust housing for use in installation, feeding and handling technology
- High protection class to meet the requirements of harsh industrial ambient
- Large write/read distance
- Active surface can be aligned in five positions
Technical specifications
- Dimensions [mm] 40 x 40 x 54
- Distance from the read/write head [mm]: 400
- Read/write head spacing [mm]: 400
- Active surface: Can be aligned in 5 positions
- Display: Operation: 1 x LED, green; tag communication: 1 x LED, yellow
- Ambient temperature-1 [°C]: -20...60
- Application: Detection of objects on transport equipment
- Operating frequency [MHz]: 0.125
- Operating voltage [V]: 24 DC
- Radio approval for: USA; Canada; EU/RED; Australia; China; Taiwan; India; South Korea; Singapore; Malaysia; United Kingdom; New Zealand
- Housing: Square
- Weight [g]: 185,000
- Communication interface: DATA / DTE10x
- Storage temperature [°C]: -25...80
- MTTF: 536
- Test mark (special cases): CCC
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12, rotary, latch locking; coding: A.
- Current consumption: < 50
- Crossing speed [m/s]: < 0.5
- Product type
Write/read head
- Type
ANT512
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320918 ifm Electronic ANT512 Write/read head ANT512 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320918 ifm Electronic ANT512 Write/read head ANT512 1 pc(s)
Description
Ifm ANT512 read/write head
