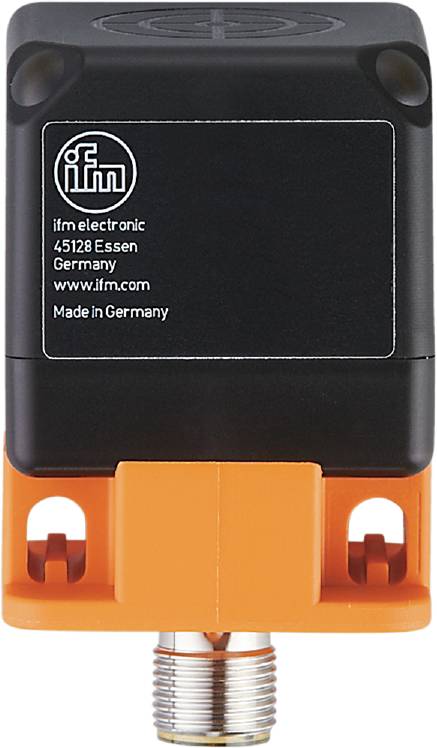

ifm Electronic ANT513 Write/read head ANT513 1 pc(s)
EAN:
Part number:
Item no:
Product type
Write/read head
Type
ANT513
Max. operating voltage
24 V DC
Operating voltage
24 V DC (max)
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Ifm ANT513 write/read head
- For the reliable identification of ID tags on workpiece carriers and products
- Robust housing for use in installation, feeding and handling technology
- High protection class to meet the requirements of harsh industrial ambient
- Large reading distance
- Active surface can be aligned in five positions
Technical specifications
- Dimensions [mm] 40 x 40 x 54
- Distance from the read/write head [mm]: 250
- Read/write head spacing [mm]: 300
- Active surface: Can be aligned in 5 positions
- Display: Operation: 1 x LED, green; tag communication: 1 x LED, yellow
- Ambient temperature-1 [°C]: -20...60
- Application: Detection of objects on transport equipment
- Operating frequency [MHz]: 13.56
- Operating voltage [V]: 24 DC
- Flush mounting type: Flush mounting
- Radio approval for: USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; South Korea; Singapore; Ukraine; Malaysia; Brazil; Mexico; New Zealand; Vietnam
- Housing: Square
- Weight [g]: 165,550
- Communication interface: DATA / DTE10x
- Storage temperature [°C]: -25...80
- MTTF: 557
- Test mark (special cases): CCC
- RFID-Standard ISO 15693
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12, rotary, latch locking; coding: A.
- Current consumption: < 50
- Crossing speed [m/s]: < 1
- Product type
Write/read head
- Type
ANT513
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320970 ifm Electronic ANT513 Write/read head ANT513 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320970 ifm Electronic ANT513 Write/read head ANT513 1 pc(s)
Description
Ifm ANT513 write/read head
