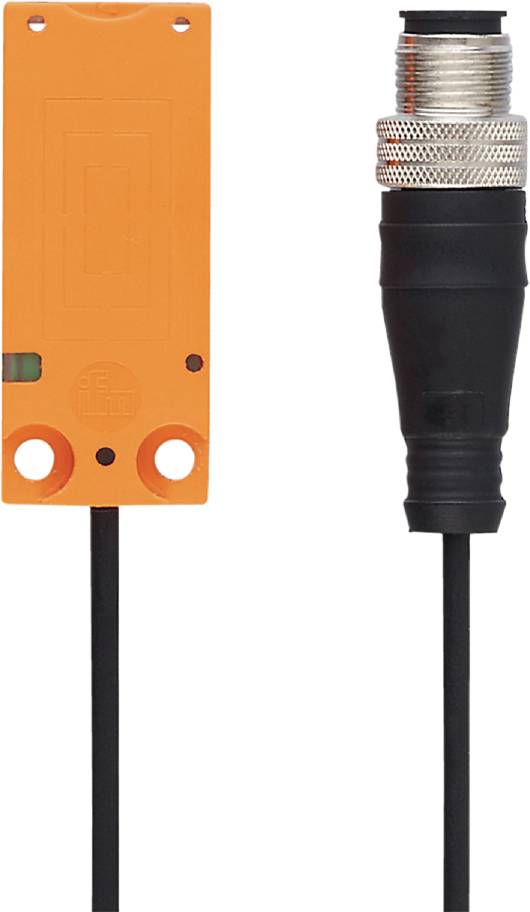

ifm Electronic ANT515 Write/read head ANT515 1 pc(s)
EAN:
Part number:
Item no:
Product type
Write/read head
Type
ANT515
Min. operating voltage
19.2 V DC
Max. operating voltage
28.8 V DC
Operating voltage
19.2 - 28.8 V DC
Datasheet (PDF)
Highlights & Details
Ifm ANT515 write/read head
- For the reliable identification of ID tags on workpiece carriers and products
- RFID HF read/write head in flat design for use in narrow installation spaces
- High protection class to meet the requirements of harsh industrial ambient
- Suitable for use with RFID-antenna adapter for increasing the range
- For connection to LF/HF RFID evaluation units through proven M12 connector
Technical specifications
- Dimensions [mm] 20 x 7 x 48
- Distance from the read/write head [mm]: 170
- Read/write head spacing [mm]: 160
- Display: Operation: 1 x LED, green; tag communication: 1 x LED, yellow
- Ambient temperature-1 [°C]: -20...60
- Application: Detection of objects on transport equipment
- Operating frequency [MHz]: 13.56
- Operating voltage [V]: 19.2... 28.8 DC
- Built: Not flush-mounted
- Radio approval for: USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine; Malaysia; Brazil; Mexico; Vietnam
- Housing: Square
- Weight [g]: 80,000
- Cable: 1 m, PUR; 3 x 0.14 mm²
- Communication interface: DATA / DTE10x
- Storage temperature [°C]: -25...80
- MTTF: 457.9
- Test mark (special cases): CCC
- RFID-Standard ISO 15693
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- Plug connection: Plug - pin layout: 0061 - plug connection: 1 x M12; coding: A.
- Current consumption: < 60
- Product type
Write/read head
- Type
ANT515
- Min. operating voltage
19.2 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.2 - 28.8 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320785 ifm Electronic ANT515 Write/read head ANT515 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320785 ifm Electronic ANT515 Write/read head ANT515 1 pc(s)
Description
Ifm ANT515 write/read head
