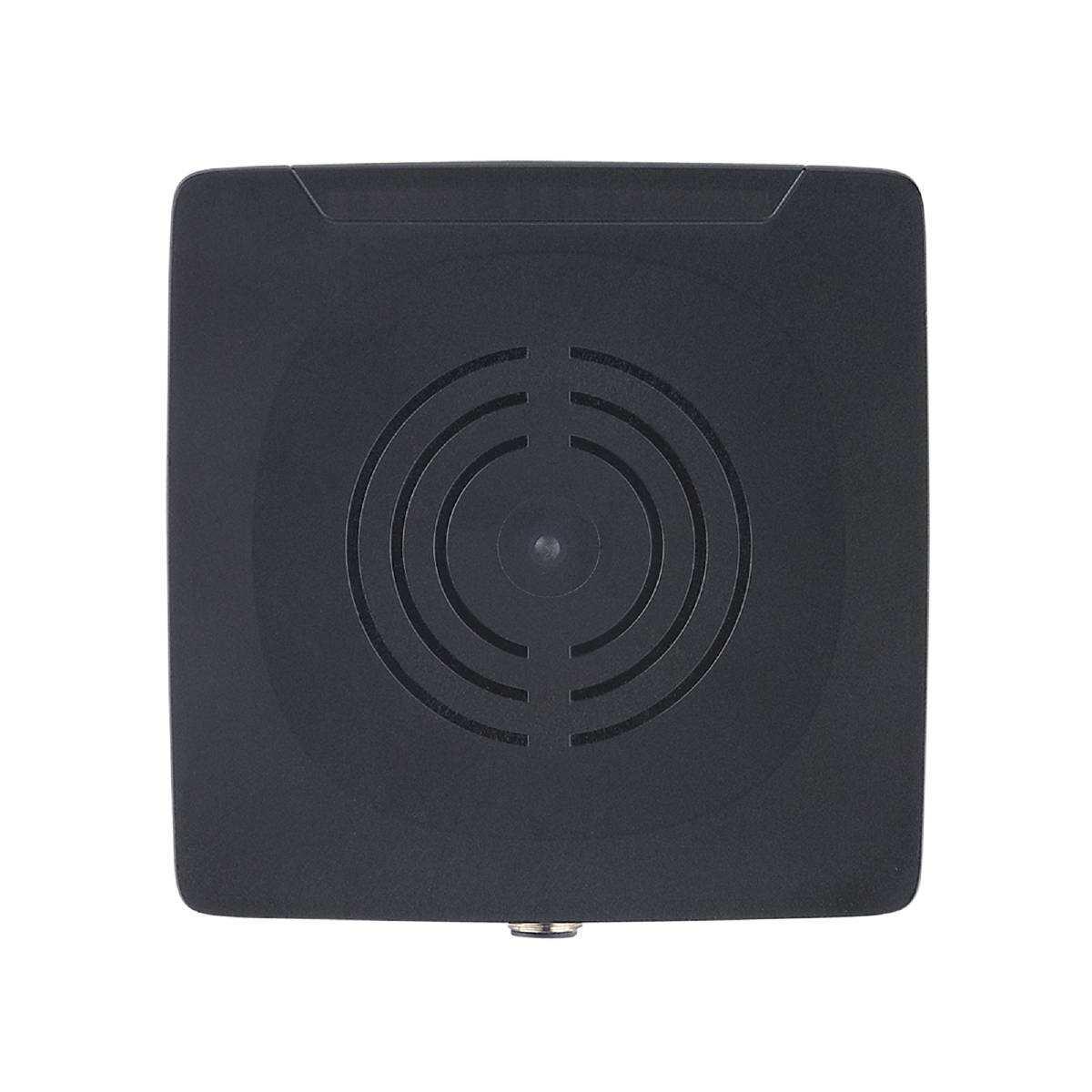

ifm Electronic ANT600 Write/read head ANT600 1 pc(s)
EAN:
Part number:
Item no:
Product type
Write/read head
Type
ANT600
Min. operating voltage
19.2 V DC
Max. operating voltage
28.8 V DC
Operating voltage
19.2 - 28.8 V DC
Datasheet (PDF)
Highlights & Details
Ifm ANT600 read/write head
- Write/read head
- 13.56 MHz
- Data/DTE10x
- 120 x 50 x 113 mm
- Ambient temperature -20...60 °C
- IP 67
Technical specifications
- Dimensions [mm] 120 x 50 x 113
- Distance from the read/write head [mm]: 400
- Read/write head spacing [mm]: 600
- Display: Operation: 1 x LED, green; Tag-communication: 4 x LED bar display, yellow Signal strength ID-TAG
- Ambient temperature-1 [°C]: -20...60
- Application: Detection of objects on transport equipment
- Operating frequency [MHz]: 13.56
- Operating voltage [V]: 19.2...28.8 DC; (supplied only by evaluation unit DTE10x)
- Radio approval for: EU/RED; Japan; Australia; China; Taiwan; India; Singapore; Ukraine; Malaysia; Brazil; Canada; Mexico; New Zealand; South Korea; USA; Vietnam
- Weight [g]: 450,000
- Communication interface: DATA / DTE10x
- Storage temperature [°C]: -25...80
- Test mark (special cases): CCC
- IP 67 protection
- Protection class III
- Plug connection: Pin layout: 0061 - plug connection: 1 x M12; coding: A.
- Current consumption: < 150
- Product type
Write/read head
- Type
ANT600
- Min. operating voltage
19.2 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.2 - 28.8 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321247 ifm Electronic ANT600 Write/read head ANT600 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321247 ifm Electronic ANT600 Write/read head ANT600 1 pc(s)
Description
Ifm ANT600 read/write head
