Buy ifm Electronic Binary fluid level gauge LI5134 LI5134 Operating voltage (range): 9.6 - 35 V DC 1 pc(s)

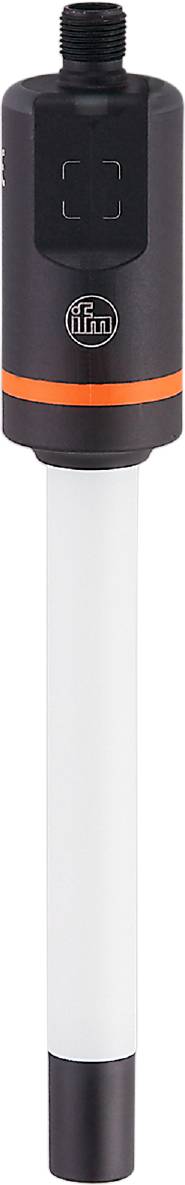

A long, rectangular, white object on a white background.

Image similar

Product type

Binary fluid level gauge

Min. operating voltage

9.6 V DC

Max. operating voltage

35 V DC

Packaging type

Piece

Type

LI5134

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm LI5134 binary level sensor

For the reliable monitoring of limit level of tanks and containers
Detection of minimum level, overfill or leakage
Simple empty or full adjustment
Suitable for water, oils and coolants
Easy adjustment of the desired immersion depth of the sensor
Integrated temperature measurement via IO-Link

Technical specifications

Active area A [mm]: 28
Response dynamics T09 - Temperature measurement [s]: 240
Response time [s]: < 0.3
Number of digital outputs: 2
Number of inputs and outputs: Number of digital outputs: 2
Display: Operation: LED, green; switching status: LED, yellow
IO-Link Revision: 1.1
Level measuring principle: Capacitive
SDCI standard IEC 61131-9
Rod length L [mm]: 737
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...85
Factory setting: Water-based media
Resolution - Temperature measurement [K]: 0.1
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; IO-Link
Standby delay time [s]: < 1
Special feature: Gold-plated contacts
Operating voltage [V]: 9.6...35 DC; (IO-Link: 18...30 DC)
Continuous current carrying capacity of the switching output DC [mA]: 100
Medium dielectric constant: > 1.8
Compressive strength [bar]: 0.5
Electrical version: PNP/NPN
Recommended media: Water; water-based media; oils; oil-based media
Accuracy - Temperature measurement [K]: 1.5
Total number of outputs: 2
Weight [g]: 510,400
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -25...85
max. Voltage drop switch output DC [V]: 2.5
Media: Liquid media
Medium temperature [°C]: -25...85
Measuring range - Temperature measurement [°C]: -25...85
Min Process cycle time [ms]: 4.5
MTTF: 433
Not suitable for: See operating instructions, section "Intended use".
Profile: Smart sensor ED2: Identification and diagnosis (0x4000), measurement data channel (0x800A)
Analogue process data: 5
Binary process data: 2
Protection class: IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)
Protection class III
SIO mode: Yes
Rod diameter [mm]: 16
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Current consumption: < 15
Overload-proof: Yes
Supported master port class: A
Vacuum strength [mbar]: -500
Reverse polarity protection: Yes
Materials in contact with the Medium: PP
