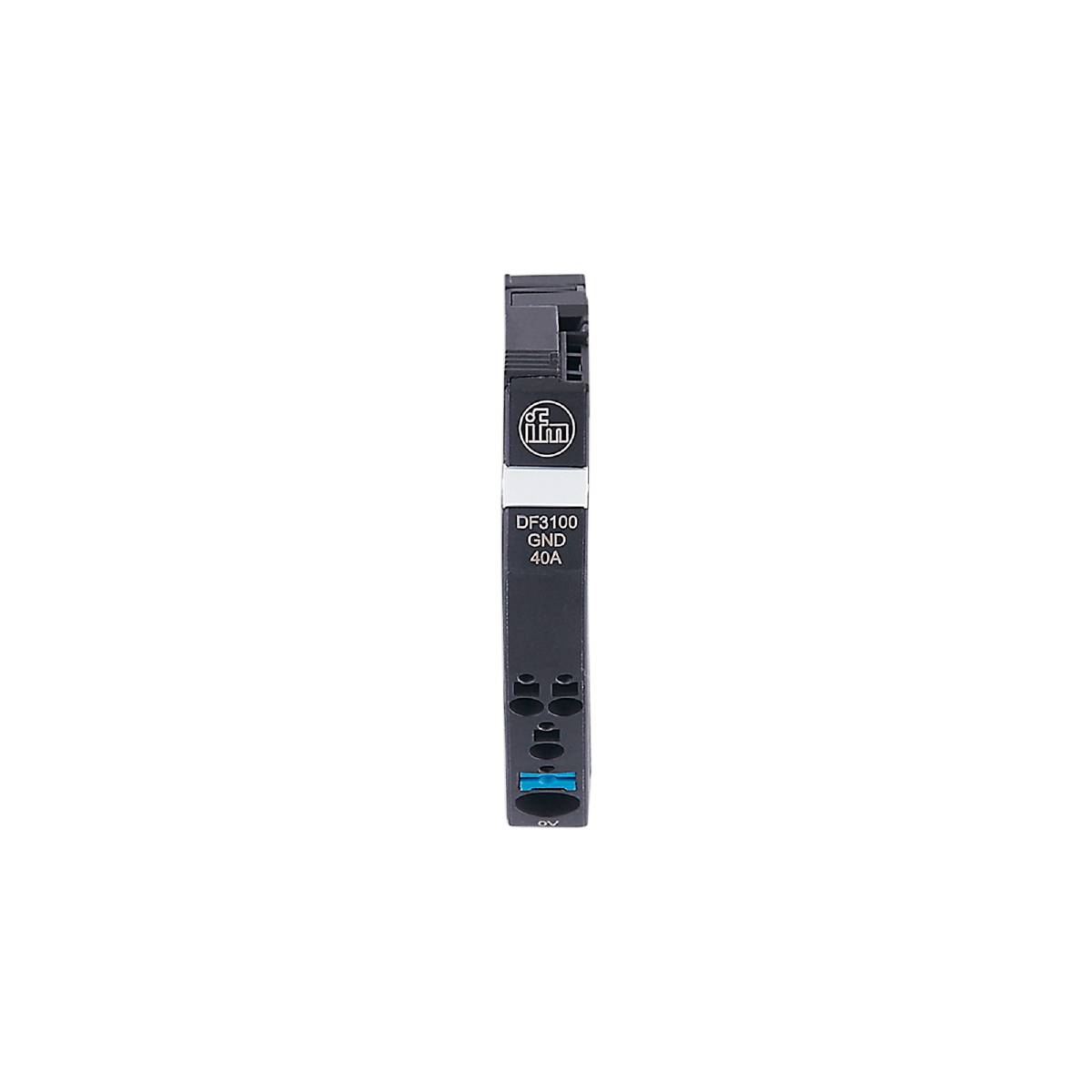

Image similar
Image similar
ifm Electronic DF3100 Ifm DF3100 infeed module for ground potential Feeder unit 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder unit
Nominal voltage
24 V DC
Content
1 pc(s)
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Datasheet (PDF)
Highlights & Details
Ifm DF3100 infeed module for ground potential
- Feeder module for mass potential
- 80 x 12.5 x 98.5 mm
Technical specifications
- Dimensions [mm] 80 x 12.5 x 98.5
- Ambient temperature-1 [°C]: -25...60
- Version: Power module GND (1 x 10 mm²)
- Operating voltage [V]: 18... 30 DC
- Weight [g]: 48,600
- Field attachable connection / terminals: Push-in terminals:
- Storage temperature [°C]: -40...70
- Max. Load current [A]: 40
- Mounting type: Rail mounting
- Assembly instructions: Modules can be aligned
- Rated voltage DC [V]: 24
- IP 20 protection (front)
- Protection class III
- Nominal voltage
24 V DC
- Product type
Feeder unit
- Content
1 pc(s)
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Max. temperature
60 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315532 ifm Electronic DF3100 Ifm DF3100 infeed module for ground potential Feeder unit 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315532 ifm Electronic DF3100 Ifm DF3100 infeed module for ground potential Feeder unit 24 V DC 1 pc(s)
Description
Ifm DF3100 infeed module for ground potential
