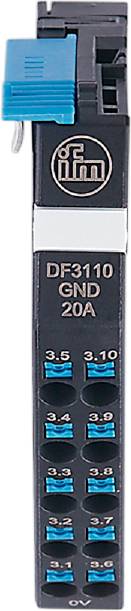

ifm Electronic DF3110 Ifm DF3110 distribution module for ground potential Distribution module 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution module
Nominal voltage
24 V DC
Content
1 pc(s)
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Datasheet (PDF)
Highlights & Details
Ifm DF3110 distribution module for ground potential
- Distributor module for mass potential
- 80 x 12.5 x 98.5 mm
Technical specifications
- Dimensions [mm] 80 x 12.5 x 98.5
- Ambient temperature-1 [°C]: -25...60
- Design: Potential module GND (10 x 2.5 mm²)
- Operating voltage [V]: 18... 30 DC
- Weight [g]: 62,500
- Field attachable connection / terminals: Push-in terminals:
- Storage temperature [°C]: -40...70
- Max. Load current [A]: 20
- Mounting type: Rail mounting
- Assembly instructions: Modules can be aligned
- Rated voltage DC [V]: 24
- Protection class IP 20
- Protection class III
- Nominal voltage
24 V DC
- Product type
Distribution module
- Content
1 pc(s)
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Max. temperature
60 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316663 ifm Electronic DF3110 Ifm DF3110 distribution module for ground potential Distribution module 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316663 ifm Electronic DF3110 Ifm DF3110 distribution module for ground potential Distribution module 24 V DC 1 pc(s)
Description
Ifm DF3110 distribution module for ground potential
