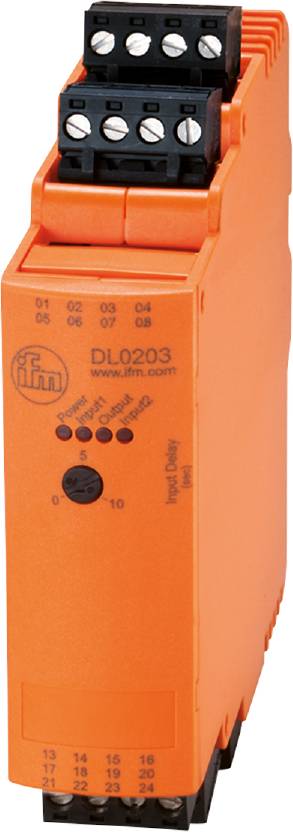

Buy ifm Electronic DL0203 Signal processing module DL0203 1 pc(s)

Image similar

Product type

Signal processing module

Type

DL0203

Min. operating voltage

110 V AC

Max. operating voltage

240 V AC

Operating voltage

110 - 240 V AC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Number of digital outputs: 1
Number of inputs and outputs: Number of digital outputs: 1; number of relay outputs: 1
Number of relay outputs: 1
Display: Power supply: 1 x LED, green; Inputs: 2 x LED, yellow; Output: 1 x LED, green
Ambient temperature-1 [°C]: -25...60
Two-point control of fill levels
Operating voltage tolerance 2 [%]: > 20
Housing: Terminal rail housing
Weight [g]: 235,000
Auxiliary power for DC [V] sensors: 18.5...30; (SEL, ≤ 100 mA)
Insulation resistance [V]: 9
Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
Contact rating 4 A (240 V AC, 24 V DC); (resistive load)
Short-circuit-proof: Yes
Storage temperature [°C]: -25...70
Max. Height above NN [m]: 2000
Max. Power consumption AC [W]: 6
Max. Power consumption DC [W]: 4
Max. Permissible relative humidity [%]: 80; (40°C: 50 non-condensing)
Mounting type: Mounting rail; (TH35 EN 60715)
MTTF: 254
Nominal frequency AC [Hz]: 50...60
Nominal voltage AC [V]: 110...240
Rated voltage DC [V]: 27
Nominal voltage tolerance [%]: > 20
Nominal voltage tolerance 2 [%]: 20...10
Protection class IP 20
Protection class IP 20 terminals
Pollution level 2; (≤ 240 V AC)
