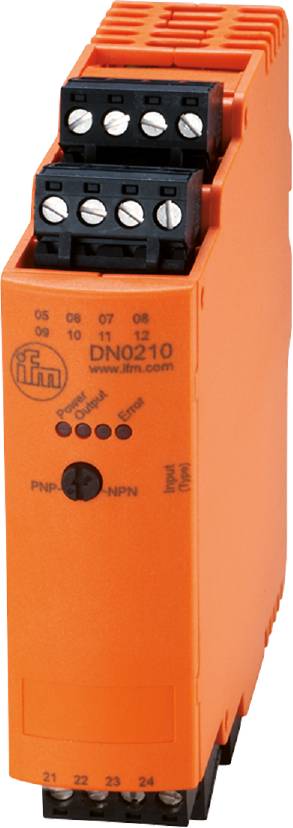

ifm Electronic DN0210 DN0210 Amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Amplifier
Type
DN0210
Connection
Plug & Clip
Output (voltage)
240 V AC. 24 V DC
Output (current)
4 A
Datasheet (PDF)
Highlights & Details
Ifm DN0210 switching amplifier
- Reliable switching of high currents or alternating currents
- Integrated wide-range power supply for sensor supply
- Particularly space-saving design
- Pluggable screw terminals simplify the mounting
- With PNP or NPN control
Technical specifications
- Number of inputs and outputs: Number of relay outputs: 1
- Number of relay outputs: 1
- Number of channels: 1
- Display: Power supply: 1 x LED, green; Output: 1 x LED, yellow; Error: 1 x LED, red
- Ambient temperature-1 [°C]: -20...60
- Application: Power supply and signal evaluation
- Input switching digital inputs PNP/NPN
- Housing: Terminal rail housing
- Weight [g]: 214,000
- Auxiliary power for DC [V] sensors: 24; (SEL, ± 10 %, 300 mA)
- Insulation resistance [V]: 9
- Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
- Contact rating 4 A (240 V AC, 24 V DC); (resistive load)
- Storage temperature [°C]: -25...70
- Max. Height above NN [m]: 3000
- Max. Power consumption AC [W]: 11
- Max. Permissible relative humidity [%]: 80; (40°C: 50 non-condensing)
- Mounting type: Mounting rail; (TH35 EN 60715)
- MTTF: 290
- Nominal frequency AC [Hz]: 50...60
- Nominal voltage AC [V]: 110...240
- Nominal voltage tolerance [%]: > 20
- Nominal voltage tolerance 2 [%]: 20...10
- Protection class IP 20
- Protection class IP 20 terminals
- Pollution level 2; (≤ 240 V AC)
- Type
DN0210
- Product type
Amplifier
- Connection
Plug & Clip
- Output (voltage)
240 V AC. 24 V DC
- Output (current)
4 A
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Operating voltage U(B)
110...240 V AC
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319692 ifm Electronic DN0210 DN0210 Amplifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319692 ifm Electronic DN0210 DN0210 Amplifier 1 pc(s)
Description
Ifm DN0210 switching amplifier
