Buy ifm Electronic DN1031 PSU DN1031 1 pc(s)

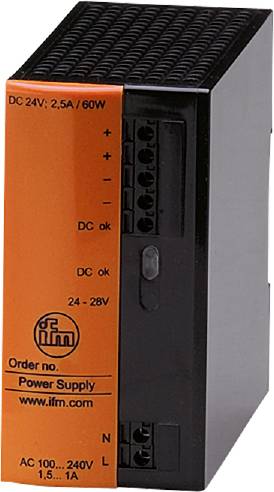

Image similar

Product type

PSU

Type

DN1031

Max. operating voltage

230 V AC

Operating voltage

230 V AC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For regulated power supply for control systems, sensors, actuators and industrial electronics
Low power loss thanks to Hohem efficiency
High power failure bridging time
Particularly space-saving design
Low heating of switching cabinet

Dimensions [mm] 90 x 45 x 100
Number of output circuits: 1
Display: DC ok 1 x LED, green
Ambient temperature-1 [°C]: 0...70
Output voltage [V]: Adjustable
Output voltage DC [V]: 24...28
Load carrying capacity DC-OK signal 24 V DC (30 mA)
Standby delay time [s]: < 0.38
Operating voltage tolerance [%]: 10
DERATING [W/K]: 2% / K (> 60° C)
Input voltage range AC [V]: 100...240
External input fuse 10 A; B
Weight [g]: 335,000
Ready-to-assemble connection / terminals: Cage clamp terminals:
Short-circuit-proof: Yes
Max. Output current at min. Output voltage [A]: 2.5
Max. Remaining ripple [mV]: 50
Mounting type: Mounting rail; (TH35 (EN 60715); clearance for convection cooling 30 mm)
Nominal frequency AC [Hz]: 47...63
Nominal voltage AC [V]: < 230
Power outage bridging time (nominal voltage 230 V AC / 50 Hz) [ms]: 90
Protection class IP 20
Protection class II (IEC 61140)
Overload-proof: Yes
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]: 88
