Buy ifm Electronic DN4014 PSU DN4014 1 pc(s)

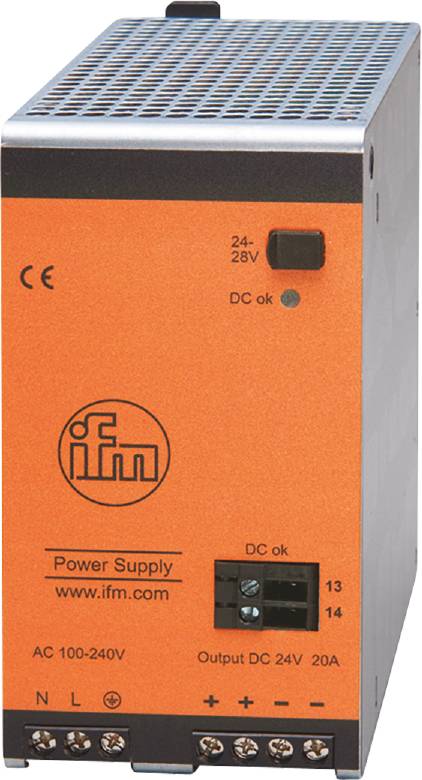

An orange power supply unit with 'ifm' printed on it. Voltage range 24-28V, marked 'Power Supply', status indicator 'DC ok'.

Image similar

Product type

PSU

Type

DN4014

Max. operating voltage

230 V AC

Operating voltage

230 V AC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm DN4014 switching power supply 24 V DC

For regulated power supply for control systems, sensors, actuators and industrial electronics
Low power loss thanks to Hohem efficiency
High power failure bridging time
Particularly space-saving design
High power reserves

Technical specifications

Dimensions [mm] 124 x 65 x 132.5
Number of output circuits: 1
Display: DC ok 1 x LED
Ambient temperature-1 [°C]: -25...70
Design DC-OK-Signal: Relay output
Output power (permanent) [W]: 480
Output power (short term) [W]: 576
Output voltage [V]: Adjustable, output voltage according to SEL, PEL
Output voltage DC [V]: 24...28
RATING DC-OK SIGNAL: 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A)
Operating voltage tolerance [%]: 15...10
DERATING [W/K]: 12 (60...70 °C)
Input voltage range AC [V]: 100...240
Input current (rated voltage 120 V AC / 60 Hz) [A]: 4.36
Input current (rated voltage 230 V AC / 50 Hz) [A]: 2.33
Peak switch-on current (nominal voltage 120 V AC / 60 Hz) [A]: 9
Peak switch-on current (nominal voltage 230 V AC / 50 Hz) [A]: 7
Switch-on current limitation: Yes
External input protection ≤ B-10 A / ≤ C-10 A
Frequency AC [Hz]: 47...64
Weight [g]: 1121,500
Field ready for connection / terminals: Screw terminals:
Short-circuit-proof: Yes
Storage temperature [°C]: -40...85
Power factor (nominal voltage 120 V AC / 60 Hz): 0.99
Power factor (nominal voltage 230 V AC / 50 Hz): 0.95
PFC power factor correction: Satisfied
Power reserve [%]: 20
Max. Output current at max. Output voltage [A]: 17.1
Max. Output current at min. Output voltage [A]: 20
Max. Output current, short-term at max. Output voltage [A]: 20.6
Max. Output current briefly at min. Output voltage [A]: 24
Max. Remaining ripple [mV]: 50
Max. Permissible relative humidity [%]: 95; (IEC 60068-2-30)
Mounting type: Support rail; (TH35 (EN 60715))
Nominal voltage AC [V]: < 230
Power outage bridging time (nominal voltage 120 V AC / 60 Hz) [ms]: 26
Power outage bridging time (nominal voltage 230 V AC / 50 Hz) [ms]: 26
Regenerative resistance [V]: 35
IP 20; (EN 60529)
Protection class I; (IEC 61140)
Overload-proof: Yes
Overload behavior: Hiccup mode; with overload or short-circuit, the output provides alternating current for 2 s and then switches off for 18 s.
Voltage surge protection: Yes; (< 32 DC)
Power loss (nominal voltage 120 V AC / 60 Hz) [W]: 37.8
Power loss (nominal voltage 230 V AC / 50 Hz) [W]: 30.6
Pollution level 2; (IEC 62103: Conductive contamination not permitted)
Efficiency (nominal voltage 120 V AC / 60 Hz) [%]: 92.7
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]: 94
