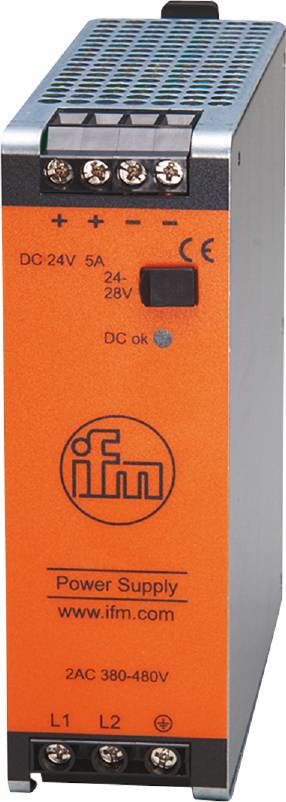

ifm Electronic DN4032 PSU DN4032 1 pc(s)
EAN:
Part number:
Item no:
Product type
PSU
Type
DN4032
Max. operating voltage
230 V AC
Operating voltage
230 V AC (max)
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Ifm DN4032 switching power supply 24 V DC
- For regulated power supply for control systems, sensors, actuators and industrial electronics
- Low power loss thanks to Hohem efficiency
- High power failure bridging time
- Particularly space-saving design
- High power reserves
Technical specifications
- Dimensions [mm] 124 x 40 x 122.5
- Number of output circuits: 1
- Display: DC ok 1 x LED
- Ambient temperature-1 [°C]: -25...70
- Output power (permanent) [W]: 120
- Output power (short term) [W]: 144
- Output voltage [V]: Adjustable, output voltage according to SEL, PEL
- Output voltage DC [V]: 24...28
- Operating voltage tolerance [%]: 15...20
- DERATING [W/K]: 3 (60...70 °C)
- Input voltage range AC [V]: 380...480
- Input current (rated voltage 400 V AC / 60 Hz) [A]: 0.75
- Input current (rated voltage 480 V AC / 50 Hz) [A]: 0.68
- Peak switch-on current (nominal voltage 400 V AC / 60 Hz) [A]: 4
- Peak switch-on current (nominal voltage 480 V AC / 50 Hz) [A]: 4
- Switch-on current limitation: Yes
- External input protection ≤ B-6 A / ≤ C-3 A
- Frequency AC [Hz]: 47...64
- Weight [g]: 607,000
- Field ready for connection / terminals: Screw terminals:
- Short-circuit-proof: Yes
- Storage temperature [°C]: -40...85
- Power factor (nominal voltage 400 V AC / 50 Hz): 0.45
- Power factor (nominal voltage 480 V AC / 50 Hz): 0.43
- PFC power factor correction: Satisfied
- Power reserve [%]: 20
- Max. Output current at max. Output voltage [A]: 4.3
- Max. Output current at min. Output voltage [A]: 5
- Max. Output current, short-term at max. Output voltage [A]: 5.2
- Max. Output current briefly at min. Output voltage [A]: 6
- Max. Remaining ripple [mV]: 50
- Max. Permissible relative humidity [%]: 95; (IEC 60068-2-30)
- Mounting type: Support rail; (TH35 (EN 60715))
- Nominal voltage AC [V]: < 400
- Power outage bridging time (nominal voltage 400 V AC / 60 Hz) [ms]: 27
- Power outage bridging time (nominal voltage 480 V AC / 50 Hz) [ms]: 48
- Regenerative resistance [V]: 35
- IP 20; (EN 60529)
- Protection class I; (IEC 61140)
- Overload-proof: Yes
- Overload response: Output current constant
- Voltage surge protection: Yes; (< 32 DC)
- Power loss (nominal voltage 400 V AC / 60 Hz) [W]: 12.7
- Power loss (nominal voltage 480 V AC / 50 Hz) [W]: 13.3
- Pollution level 2; (IEC 62103: Conductive contamination not permitted)
- Efficiency (nominal voltage 400 V AC / 60 Hz) [%]: 90.4
- Efficiency (nominal voltage 480 V AC / 50 Hz) [%]: 90
- Product type
PSU
- Type
DN4032
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320616 ifm Electronic DN4032 PSU DN4032 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320616 ifm Electronic DN4032 PSU DN4032 1 pc(s)
Description
Ifm DN4032 switching power supply 24 V DC
