Buy ifm Electronic DP1213 DP1213 Data gateway IO-Link

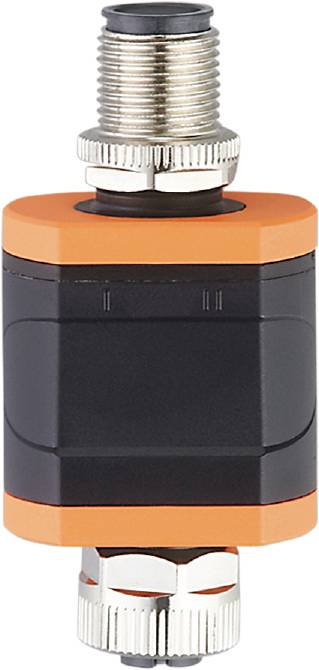

Image similar

Product type

Data gateway

Interfaces

IO-Link

Type

DP1213

Control LEDs

Yes

Manufacturer part #

DP1213

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Analog output current [mA]: 4...20
Number of analog outputs: 2
Number of inputs and outputs: Number of analog outputs: 2
Display: Operation: 1 x LED, green; analogue output: 2 x LED, yellow
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...70
Required master port class: A/B
Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
Analog output accuracy [%]: 0.25
Weight [g]: 91,500
Communication interface: IO-Link
Storage temperature [°C]: -25...70
Max. Burden [Ω]: 300
Max. Height above NN [m]: 4000
Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40 °C) non-condensing)
Min Process cycle time [ms]: 3.6
MTTF: 352
Rated voltage DC [V]: 24
Profile Smart sensor
Analogue process data: 2
Binary process data: 0
IP 67 protection
SIO mode: No.
Current consumption: 300
Current carrying capacity total [A]: 0.2
Pollution level: 2
