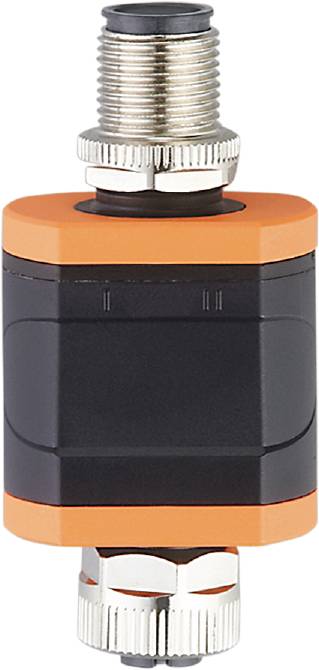

Buy ifm Electronic DP1603 Relay adapter DP1603 1 pc(s)

Image similar

Product type

Relay adapter

Type

DP1603

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Operating voltage

18 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 63 x 30 x 24
Number of digital inputs: 2; (Type 3 (IEC 61131-2))
Number of inputs and outputs: Number of digital inputs: 2; number of relay outputs: 2
Number of relay outputs: 2
Ambient temperature-1 [°C]: -25...60
Output function: Closer
Operating voltage [V]: 18...30 DC; ((in wet environment: 18...28 ) ; after SEL/PEL)
Input connection digital inputs: PNP
Weight [g]: 82,200
Weight (without accessories and without packaging) [g]: 35
Storage temperature [°C]: -25...70
Max. Height above NN [m]: 4000
Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40 °C) non-condensing)
MTTF: 942
Rated voltage DC [V]: 24
Switching frequency AC [Hz]: 1
Switching frequency DC [Hz]: 1
IP 67 protection
Voltage range AC [V]: 0...20; ((in wet environment: 0...16 ); according to SEL/PEL)
Voltage range DC [V]: 0...32; (according to SEL/PEL)
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12, straight; Coding: A / 2.Socket - Pin layout: 0017 - Plug connection: 1 x M12, straight; Coding: A
Current consumption: < 10
Power rating per output [mA]: 1000
Pollution level: 2; (before assembly and when replacing equipment)
