Buy ifm Electronic DP2200 Limit monitoring DP2200 1 pc(s)

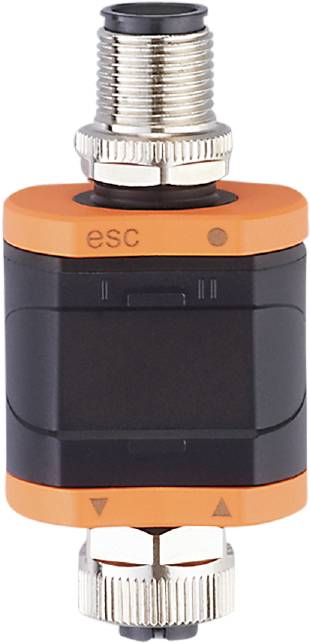

A black tool part with an orange edge and the inscription 'esc'.

Image similar

Product type

Limit monitoring

Type

DP2200

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Operating voltage

18 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm DP2200 Display and Limit Value / Converter 4...20 mA - IO-Link

For reliable monitoring of limit values of analogue sensors
Easy-to-read LED display with red/green alternating display
Compact design with high protection class
Convenient communication and parameterization via IO-Link
Reliable signal conversion of analog measured values into IO-Link

Technical specifications

Dimensions [mm] 63 x 30 x 24
Analog output current [mA]: 4...20
Analog input current [mA]: 4...20
Number of analog outputs: 1
Number of analog inputs: 1
Number of digital outputs: 1
Number of inputs and outputs: Number of analog inputs: 1; number of digital outputs: 1; number of analog outputs: 1
Display: Switching state: LED, yellow; operation: LED, green; : 7-segment LED display, red / green 4-digit parameterizable; : digit height 6.8 mm; : digit width 3.8 mm
IO-Link Revision - IO-Link Device: 1.1
SDCI standard - IO-Link device IEC 61131-9
Transmission type - IO-Link Device: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Application: Distributed display, preprocessing and conversion of analog signals
10-bit analogue resolution
Output function: NO/NC contact; (can be parameterized)
Required master port class - IO-Link Device: A.
Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
Accuracy: 0.75; (% of the end-of-range analog output)
Weight [g]: 108,000
Communication interface: IO-Link
Storage temperature [°C]: -25...70
Max. Height above NN [m]: 4000
Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40°C); non-condensing)
Min Process cycle time - IO-Link Device [ms]: 3
MTTF: 373
Rated voltage DC [V]: 24
Profile - IO-Link device: Smart sensor
Analog process data - IO-Link Device: 1
Process data binary - IO-Link Device: 1
IP 67 protection
Sensor supply of the inputs: From operating voltage
SIO mode - IO-Link device: Yes
Voltage range DC [V]: 10...30
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A / 2.Socket - Pin layout: 0017 - Plug connection: 1 x M12; Code: A
Current consumption: 30...900
Current carrying capacity total [A]: 0.8
Power rating per output [mA]: 50
Pollution level: 2
