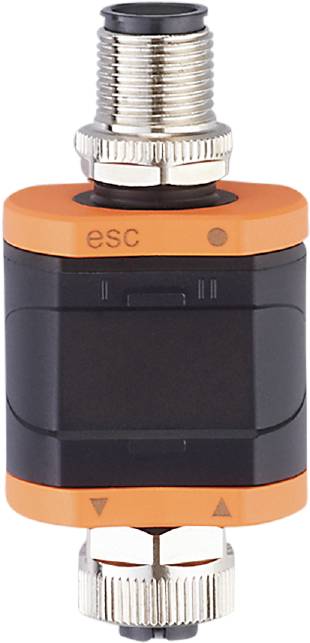

Name: ifm Electronic DP2402 DP2402 Pulse widening 1 pc(s)
Brand: ifm Electronic
SKU: 3319682

Image similar

Product type

Pulse widening

Input signal (current) (max.)

200 mA

Type

DP2402

Dim

(L x W x H) 63 x 30 x 24 mm

Output (current)

0.2 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ifm DP2402 pulse extension

Dimensions [mm] 63 x 30 x 24
Number of digital outputs: 2
Number of digital inputs: 2; (IEC61131-2)
Number of inputs and outputs: Number of digital inputs: 2; number of digital outputs: 2
Display: Operation: 1 x LED, green; switching output: 2 x LED, yellow; : 7-segment LED display, red
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Output function: NO/NC contact; (can be parameterized)
Required master port class: A
Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
Input current limit [mA]: 200
Electrical version: PNP
Weight [g]: 84,200
Weight (without accessories and without packaging) [g]: 35
Communication interface: IO-Link
Short-circuit-proof: Yes
Storage temperature [°C]: -25...60
Max. Height above NN [m]: 4000
Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40 °C) non-condensing)
Measuring frequency [Hz]: < 2000
MTTF: 317
Rated voltage DC [V]: 24
Binary process data: 2
IP 67 protection
SIO mode: Yes
Current consumption: < 380
Current carrying capacity total [A]: 0.2
Pollution level: 2
Usage type: Parameterization
