Buy ifm Electronic DTE100 RFID reader DTE100 1 pc(s)

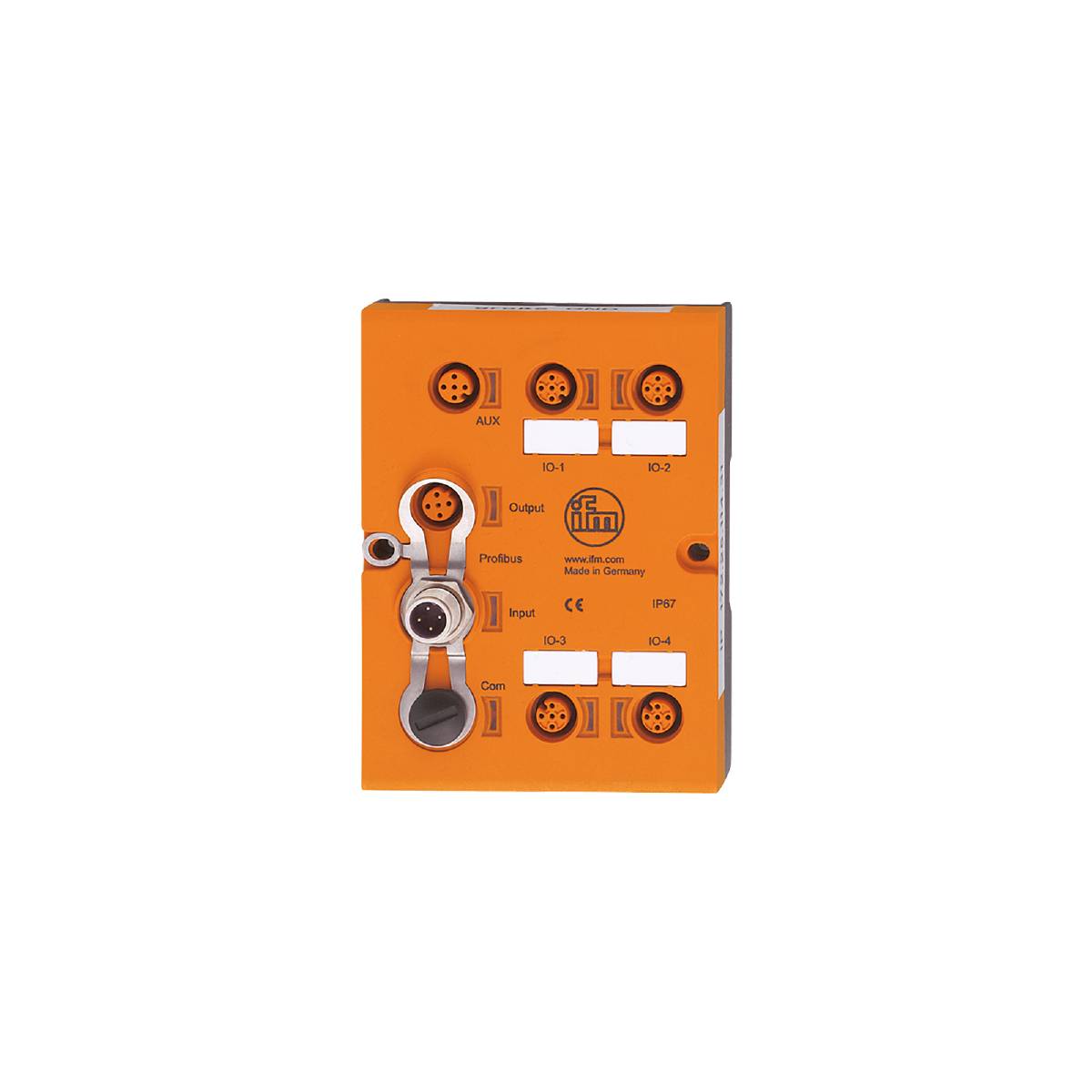

Image similar

Product type

RFID reader

Type

DTE100

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Operating voltage

18 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

RFID evaluation unit with PROFIBUS DP
With four channels for connection of RFID antennas or digital I/Os
Connection of the antennas with standard connecting cables
Optimised Ethernet TCP/IP web server for device setup, diagnostics and monitoring
High protection class to meet the requirements of harsh industrial ambient

Dimensions [mm] 115 x 46.2 x 85
Number of digital outputs: 4
Number of inputs and outputs: Number of digital outputs: 4
Display: Power supply: 1 x LED, green; : 1 x LED, yellow; Profibus-DP: 1 x LED, red; : 1 x LED, green; Ethernet: 1 x LED, green; : 1 x LED, yellow; Inputs/Outputs: 1 x LED, green; : 1 x LED, yellow
Ambient temperature-1 [°C]: -20...60
Application: For up to 4 read/write heads, type ANT41x/ANT51x
Operating voltage [V]: 18... 30 DC
Weight [g]: 390,000
Communication interface PROFIBUS DP
Storage temperature [°C]: -20...85
MTTF: 101.69
IP 67 protection
Plug connection: Voltage supply - Pin layout: 0017 - Plug connection: M12; Coding: A / Profibus IN - Pin layout: 0090 - Plug connection: M12; Coding: B / Profibus OUT - Pin layout: 0162 - Connector: M12; Coding: B
Current consumption: < 3000
Current rating per output [mA]: 500; (IO 1.2; IO 3.4: 1000 )
