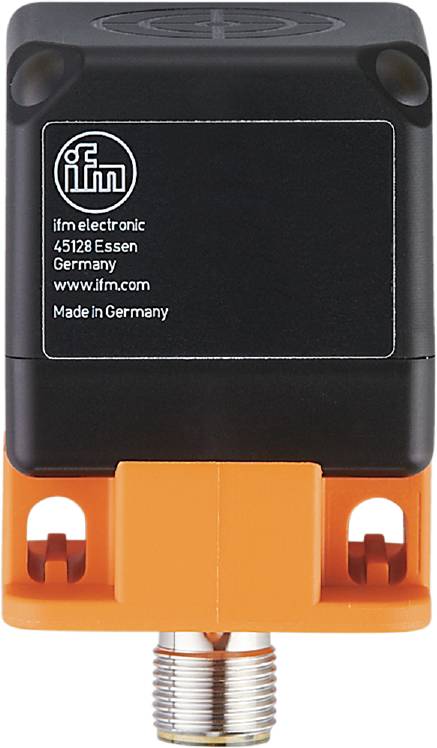

ifm Electronic DTI513 Write/read head DTI513 1 pc(s)
EAN:
Part number:
Item no:
Product type
Write/read head
Type
DTI513
Min. operating voltage
19.2 V DC
Max. operating voltage
28.8 V DC
Operating voltage
19.2 - 28.8 V DC
Datasheet (PDF)
Highlights & Details
Ifm DTI513 read/write head
- For the reliable identification of ID tags on workpiece carriers and products
- Robust housing for use in installation, feeding and handling technology
- High protection class to meet the requirements of harsh industrial ambient
- Active surface can be aligned in five positions
- For connection to IO-Link Master version 1.1 using proven M12 connector
Technical specifications
- Dimensions [mm] 40 x 40 x 54
- Display: Operation: 1 x LED, green; tag communication: 1 x LED, yellow
- IO-Link Revision: 1.1
- SDCI standard IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -20...60
- Application: Detection of objects on transport equipment
- Operating frequency [MHz]: 13.56
- Required master port class: A
- Operating voltage [V]: 19.2... 28.8 DC
- Flush mounting type: Flush mounting
- Radio approval for: USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Malaysia; Brazil; Mexico; New Zealand; South Korea; Vietnam
- Housing: Square
- Weight [g]: 192,000
- Communication interface: IO-Link
- Storage temperature [°C]: -25...80
- MTTF: 567
- Profile: Smart sensor: Device identification
- Test mark (special cases): CCC
- RFID-Standard ISO 15693
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- SIO mode: No.
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 50
- Product type
Write/read head
- Type
DTI513
- Min. operating voltage
19.2 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.2 - 28.8 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320829 ifm Electronic DTI513 Write/read head DTI513 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320829 ifm Electronic DTI513 Write/read head DTI513 1 pc(s)
Description
Ifm DTI513 read/write head
