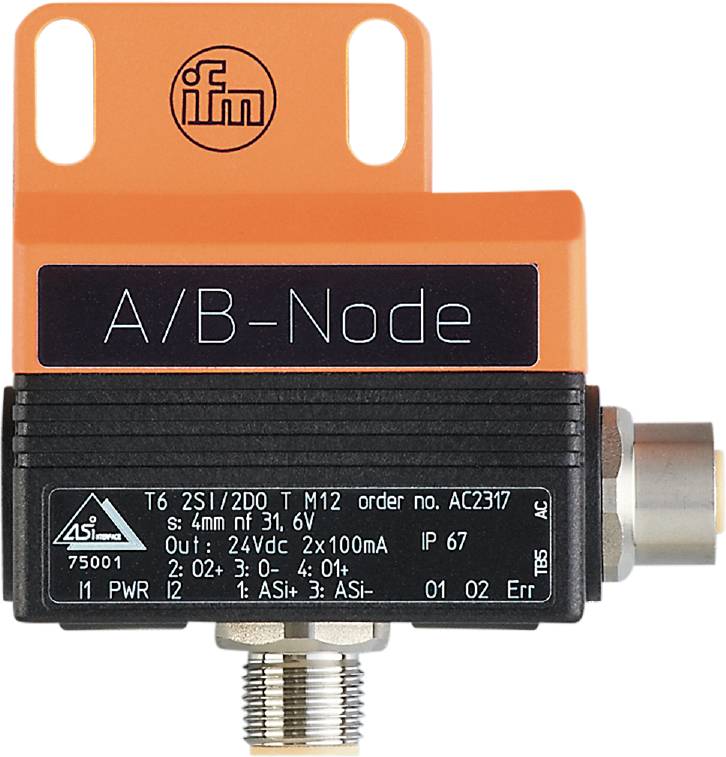

Buy ifm Electronic Dual sensor AC2317 26.5 - 31.6 V DC 1 pc(s)

Image similar

Product type

Dual sensor

Max. operating voltage

31.6 V DC

Content

1 pc(s)

Type

AC2317

Features

LED indicator

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 55 x 60 x 35
Actuator supply of outputs: AS-i
Number of digital outputs: 2
Number of digital inputs: 2
Number of inputs and outputs: Number of digital inputs: 2; number of digital outputs: 2
Display: Operation: 1 x LED, green; function: 1 x LED, yellow; error: 1 x LED, red
Galvanically decoupled Digital output: No.
Ambient temperature-1 [°C]: -20...70
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: A.E
AS-i profile S-7.A.E
AS-i Version 2.1
AS-i certificate: 75001
Operating voltage [V]: 26.5...31.6 DC; ("supply class 2" according to cULus)
Built: Not flush-mounted
Electrical version AS-i
Extended addressing mode: Yes
Weight [g]: 178,500
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: No.
Max. Current consumption from AS-i [mA]: 260
MTTF: 310
Switching distance [mm]: 4
IP 67 protection
Sensor supply of inputs: AS-i
Power supply [V]: 20...30
Plug connection: Socket - pin layout: 0017 - plug connection: 1 x M12; coding: A; body of handles: Stainless steel / plug - pin layout: 0001 - plug connection: 1 x M12; coding: A; grip body: Stainless steel
Power rating per output [mA]: 100
Watchdog integrated: Yes
