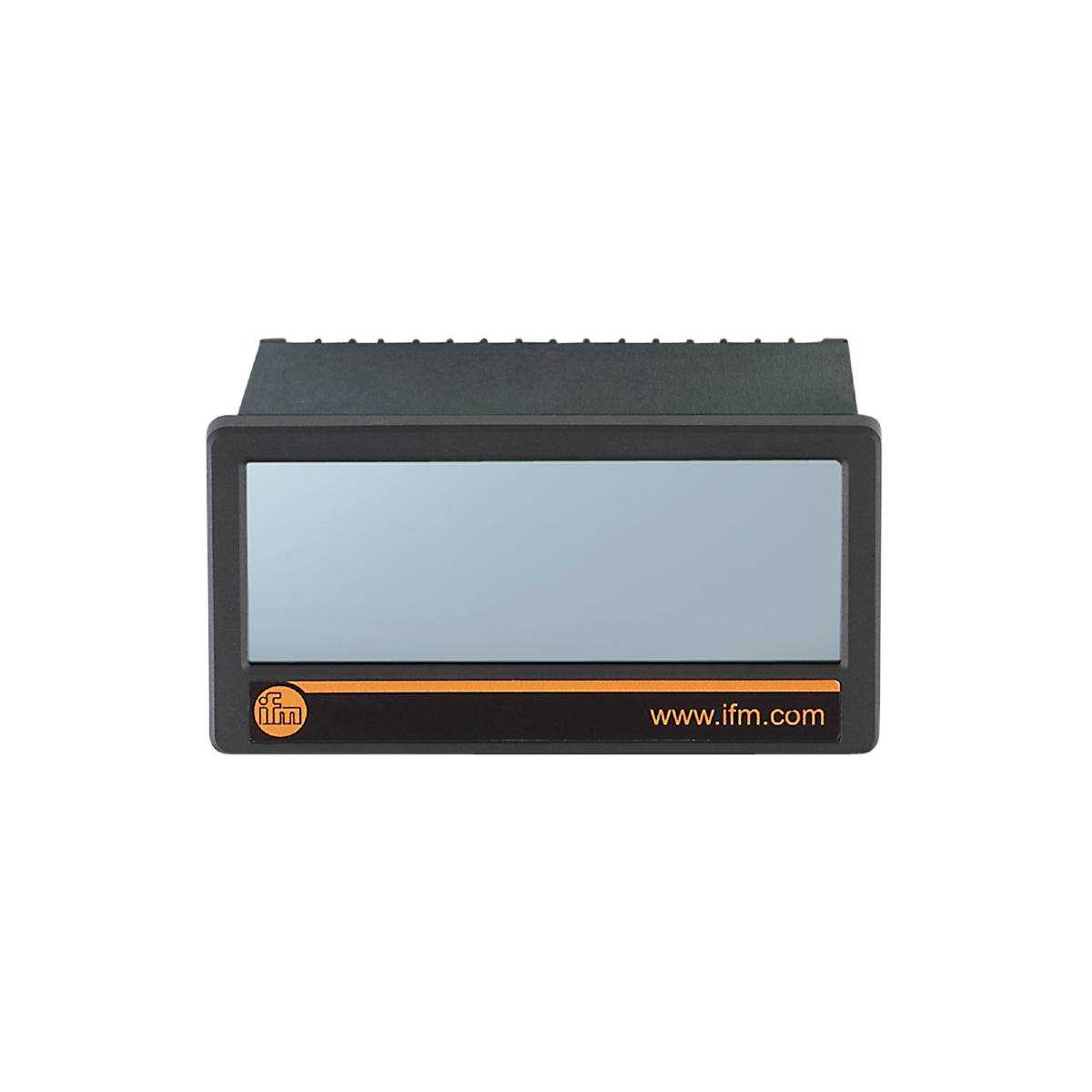

ifm Electronic DX2045 Digital display
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ifm DX2045 digital display
- digital display
- 48 x 112 x 116 mm
- Terminals
Technical specifications
- Dimensions [mm] 48 x 112 x 116
- Analog input voltage [V]: -10...10
- Analog input current [mA]: 0...20
- Number of analog inputs: 2; (voltage or current input)
- Number of digital outputs: 4
- Number of inputs and outputs: Number of analog inputs: 2; number of digital outputs: 4
- Display: Colour display: Full-graphics LCD display, touch-screen
- IO-Link Revision: 1.1
- Transmission type IO-Link: COM3 (230.4 kBaud)
- Ambient temperature-1 [°C]: -20...60
- Application: Display and monitoring of analog signals, e.g. from pressure, temperature or flow sensors
- 16-bit analogue resolution
- Required master port class: A
- OPERATING VOLTAGE [V]: 115...230 AC / 18...30 DC
- Frequency AC [Hz]: 50...60
- Analog input accuracy [%]: 0.1
- Weight [g]: 369,000
- Communication interface: IO-Link
- Field ready for connection / terminals: Screw terminals:
- Storage temperature [°C]: -25...70
- Power consumption [W]: 3
- Min Process cycle time [ms]: 3
- Mounting type: Control panel cut-out: 91 x 43 mm
- Protection system: IP 65
- Protection class IP 20 terminals
- Current consumption: 100
- Power rating per output [mA]: 200
- Overload-proof: Yes
- Product type
Digital display
- Reading type
Voltage
- Reading range (min.)
-10 V
- Type
DX2045
- Reading range (max.)
10 V
- Display technology
LCD
IP65
- Recess width
91 mm
- Recess height
43 mm
- Dim
(L x W x H) 112 x 116 x 48 mm
- Weight
369.000 g
- Max. operating voltage
30 V DC
230 V AC
- Min. operating voltage
18 V DC
115 V AC
- Display lighting
RGB
- Features
Colour display
- Recess depth
116 mm
- Width
116 mm
- Height
48 mm
- Length
112 mm
- Interfaces
IO-Link
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321315 ifm Electronic DX2045 Digital display
User & Safety Instructions
User & Safety Instructions 3321315 ifm Electronic DX2045 Digital display
Description
Ifm DX2045 digital display
