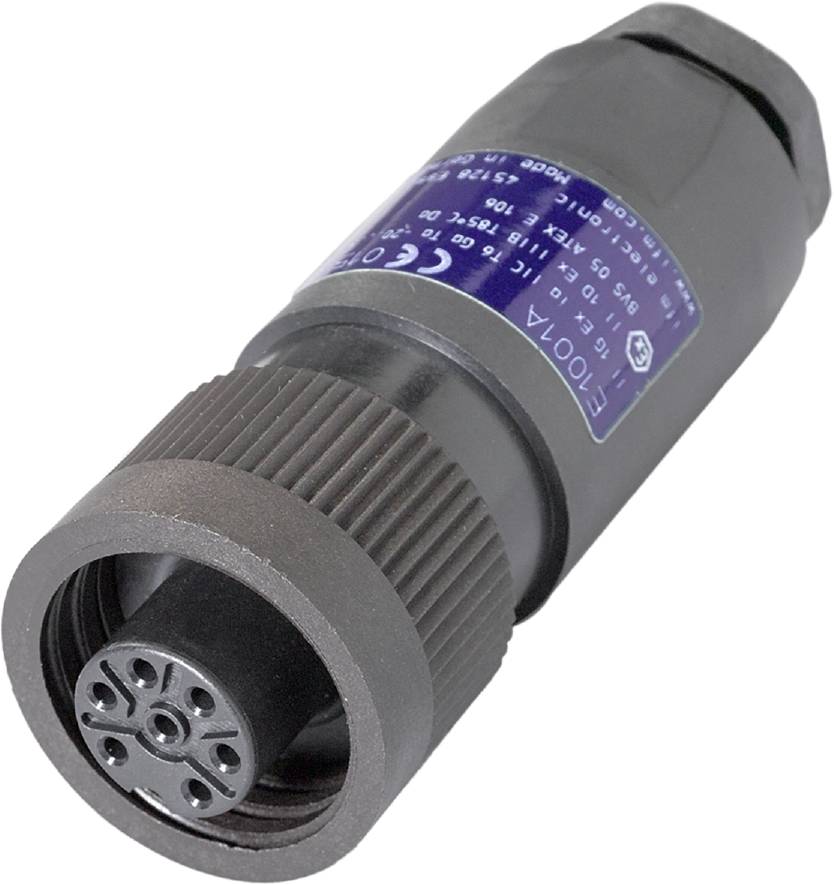

ifm Electronic E1001A Sensor/actuator connector Socket, straight No. of pins (RJ): 7 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connection side A
RD24
Connection side B
Customisable
No. of pins
7
Datasheet (PDF)
Highlights & Details
Ifm E1001A mounted socket
- For applications in areas where there is a risk of explosion
- High operating temperature range
- Gold plated contacts for reliable electrical connections
- High protection class to meet the requirements of harsh industrial ambient
- Secure cable connection by means of screw terminals
Technical specifications
- Dimensions [mm] 29 x 29 x 71
- Ambient temperature-1 [°C]: -20...80
- Application: Connection to certified intrinsically safe circuits
- ATEX Device Identification: II 1G Ex ia IIC T6 Ga; II 1D Ex ia IIIB T85°C Da; II 1D Ex ia IIIC T85°C Da
- Special feature: Gold-plated contacts
- Weight [g]: 59,100
- Connection/terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 10...12 mm
- IP 67 protection
- Plug connection: Socket - pin layout: 0029 - plug connection: 1 x RD24, straight; coding: A; grip body: PBT; locking: PA; Contacts: gold-plated
- Material grip body: PBT
- Material nut cap: PA
- APPROVAL: BVS 05 ATEX E106
- Type
E1001A
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connection side A
RD24
- Connection side B
Customisable
- No. of pins
7
- Coding
A
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Manufacturer part #
E1001A
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315958 ifm Electronic E1001A Sensor/actuator connector Socket, straight No. of pins (RJ): 7 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315958 ifm Electronic E1001A Sensor/actuator connector Socket, straight No. of pins (RJ): 7 1 pc(s)
Description
Ifm E1001A mounted socket
