Buy ifm Electronic E10136 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

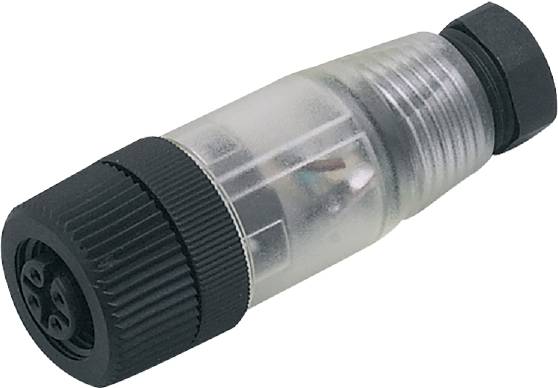

Translucent modern connector, partially transparent, revealing internal wires, with dark end caps.

Image similar

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

M12

Connection side B

Customisable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm E10136 Pre-assembled socket

Highly visible LED
High operating temperature range
Gold plated contacts for reliable electrical connections
High protection class to meet the requirements of harsh industrial ambient
Secure cable connection by means of screw terminals

Technical specifications

Dimensions [mm] 18 x 18 x 46
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
Ambient temperature-1 [°C]: -40...85
Operating voltage [V]: 10... 30 DC
Electrical version: PNP
Weight [g]: 14,000
Connection/terminals ready for assembly: Screw terminals: ...0.75 mm²; cable jacket: Ø 4...6 mm
IP 67 protection
Plug connection: Socket - pin layout: 0002 - plug connection: 1 x M12, straight; coding: A; body: PA; locking: PA
Material Gripp: PA
Material nut cap: PA
