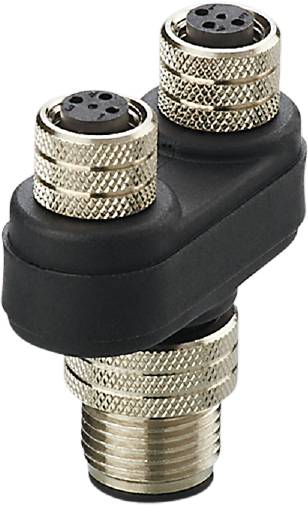

Image similar

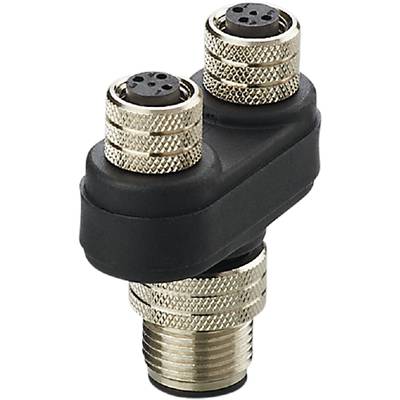

Image similar
ifm Electronic E10802 Splitter cable No. of pins (RJ): 4, 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connection side A
M8
Connection side B
M12
No. of pins
4
3
Nominal voltage
60 V DC
Datasheet (PDF)
Highlights & Details
Ifm E10802 Y-distributor
- For use in applications with many inputs and outputs in confined spaces
- High protection class to meet the requirements of harsh industrial ambient
- Gold plated contacts for reliable electrical connections
- High operating temperature range
Technical specifications
- Dimensions [mm] 15.4 x 35.4 x 39.1
- Ambient temperature-1 [°C]: -25...90
- Connector version: M8
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 60 DC
- Weight [g]: 21,800
- IP 67 protection
- Protection class III
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; Handle body: PUR; Locking: Brass, nickel-plated; Contacts: gold-plated / 3.socket - pin layout: 0013 - connector: 2 x M8; code: A; handle body: PUR; locking: brass, nickel-plated; Contacts: gold-plated
- Current carrying capacity total [A]: 3
- Current rating per module / slot [A]: 3
- Material grip body: PUR
- Material swivel nut: Nickel-plated brass
- Type
E10802
- Product type
Splitter cable
- Connection side A
M8
- Connection side B
M12
- No. of pins
4
3
- Jacket material
PUR
- Nominal voltage
60 V DC
- Coding
A
A
- Contact material
Gold plated
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Manufacturer part #
E10802
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315756 ifm Electronic E10802 Splitter cable No. of pins (RJ): 4, 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315756 ifm Electronic E10802 Splitter cable No. of pins (RJ): 4, 3 1 pc(s)
Description
Ifm E10802 Y-distributor
