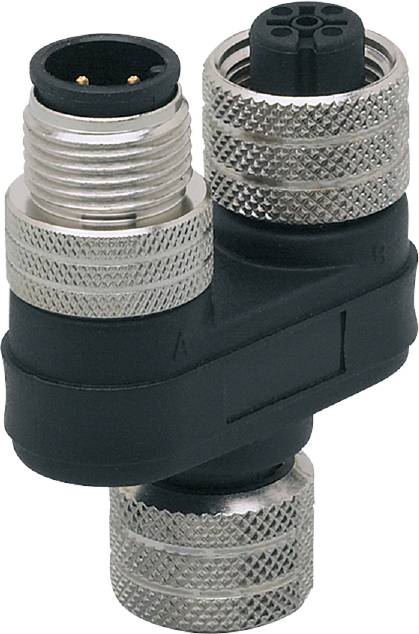

ifm Electronic E11569 Splitter cable T splitter 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Splitter cable
Connector type
T splitter
Connection side A
M12
Connection side B
M12
Nominal voltage
30 V AC
36 V DC
Datasheet (PDF)
Highlights & Details
Ifm E11569 Y-distributor
- For pseudo-serial wiring of safety switches
- High protection class to meet the requirements of harsh industrial ambient
- High operating temperature range
Technical specifications
- Ambient temperature-1 [°C]: -25...90
- Design: T-piece for pseudo-serial wiring of safety sensors
- OPERATING VOLTAGE [V]: < 30 AC / < 36 DC
- Weight [g]: 31,400
- Protection class:IP 68
- Plug connection: Socket - pin layout: Zero - connector: 1 x M12; grip body: PUR; lock: Brass, nickel-plated / plug - pin layout: Zero - connector: 1 x M12; grip body: PUR; locking: Brass, nickel-plated / socket - pin layout: Zero - connector: 1 x M12; grip body: PUR; locking: Brass, nickel-plated
- Current carrying capacity total [A]: 4
- Current rating per module / slot [A]: 4
- Material grip body: PUR
- Material swivel nut: Nickel-plated brass
- Packaging type
Piece
- Type
E11569
- Product type
Splitter cable
- Connector type
T splitter
- Connection side A
M12
- Connection side B
M12
- Jacket material
PUR
- Nominal voltage
30 V AC
36 V DC
- Thread type (wiring and installation)
M12
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Manufacturer part #
E11569
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315765 ifm Electronic E11569 Splitter cable T splitter 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3315765 ifm Electronic E11569 Splitter cable T splitter 1 pc(s) Piece
Description
Ifm E11569 Y-distributor
