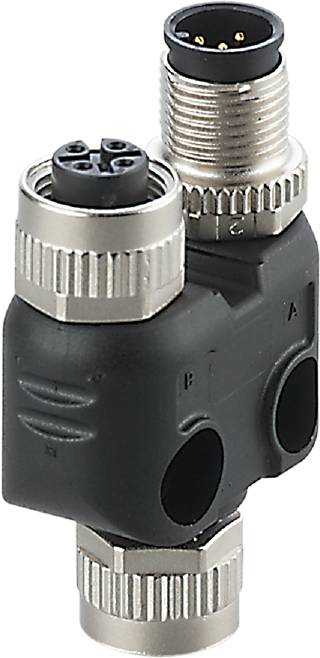

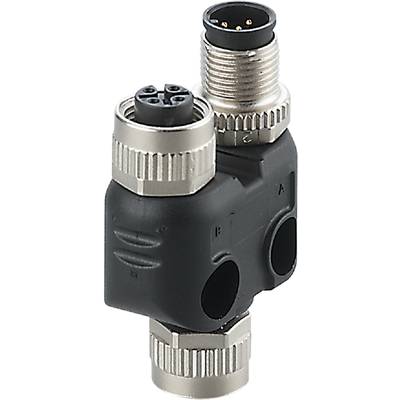

ifm Electronic E12529 Splitter cable M12 Socket No. of pins (RJ): 5, 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connector type
Socket
Connection side A
M12
Connection side B
M12
No. of pins
5
5
Datasheet (PDF)
Highlights & Details
Ifm E12529 Y-splitter
- Y-distributor
- Operating voltage 60 V AC.
- Housing materials PUR black
- IP 68
- Silicone-free yes
- Gold-plated contacts yes
Technical specifications
- Ambient temperature-1 [°C]: -25...85
- Special feature: Silicon-free; gold-plated contacts
- OPERATING VOLTAGE [V] 60 AC/DC
- Weight [g]: 37,100
- Protection class:IP 68
- Protection class: II
- Silicone-free: Yes
- Plug connection: Socket - pin layout: 0017 - plug connection: 2 x M12; coding: A; body: PUR, halogen-free; contacts: Gold-plated / plug - pin layout: 0063 - connector: 1 x M12; coding: A; body: PUR, halogen-free; contacts: Gold-plated
- Current carrying capacity total [A]: 4
- Material of grip body: PUR, halogen-free
- Type
E12529
- Product type
Splitter cable
- Connector type
Socket
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
5
- Jacket material
PUR
- Nominal voltage
60 V DC/AC
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
A
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
E12529
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316074 ifm Electronic E12529 Splitter cable M12 Socket No. of pins (RJ): 5, 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316074 ifm Electronic E12529 Splitter cable M12 Socket No. of pins (RJ): 5, 5 1 pc(s)
Description
Ifm E12529 Y-splitter
