ifm Electronic E30072 Adapter E30072 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E30072
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

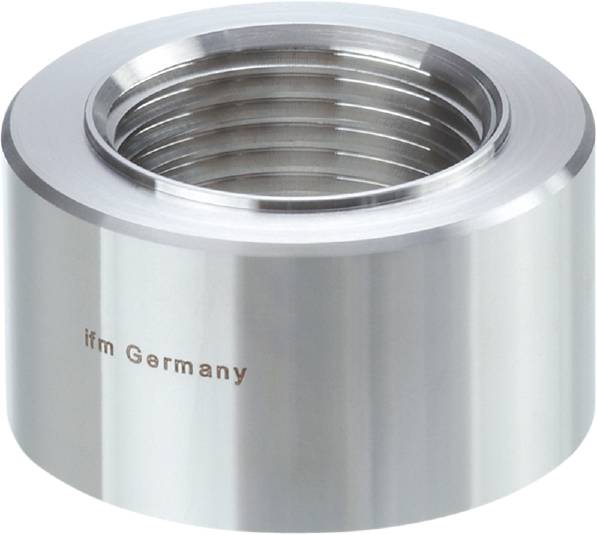

Ifm E30072 weld adapter
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High compressive strength
Technical specifications
- Sealing ring
- Compressive strength [bar]: 150
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 292,500
- Process connection: Welding adapter Ø 50 mm
- G 1 sealing cone. Sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L) ; Surface finish : Ra<0.4 / Rz 4; O-ring: FPM; O-ring: EPDM
- Product type
Adapter
- Type
E30072
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318751 ifm Electronic E30072 Adapter E30072 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318751 ifm Electronic E30072 Adapter E30072 1 pc(s)
Description
Ifm E30072 weld adapter
