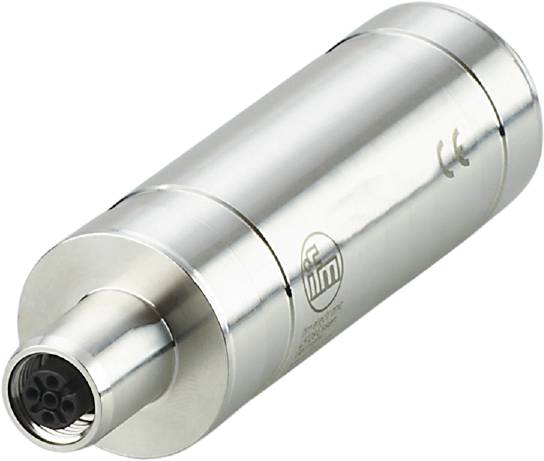

Buy ifm Electronic E30444 E30444 Repeater M12 plug

Image similar

Product type

Repeater

Interfaces

M12 plug

Type

E30444

Max. modules

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Display: 1 x LED; operation: Green; IO-Link: Green; error: Red
SDCI standard IEC 61131-9
Transmission type IO-Link: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Ambient temperature-1 [°C]: -25...65
Standby delay time [s]: < 2; (each repeater)
Special feature: Gold-plated contacts
Operating voltage [V]: 18... 30 DC
Weight [g]: 212,000
Communication interface: IO-Link
Storage temperature [°C]: -40...85
MTTF: 409
Rated voltage DC [V]: 24
Protection class: IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)
Protection class III
SIO mode: No.
Plug connection: Plug - pin layout: 0063 - plug connection: 1 x M12; coding: A; contacts: Gold-plated / socket - pin layout: 0017 - connector: 1 x M12; coding: A; contacts: Gold-plated
Current consumption: < 20
Current carrying capacity per port [A]: 0.84; (Port Class; Port Class B: 2)
Voltage surge protection: Yes; (integrated)
Supported IO-Link Revision: 1.0; 1.1
Supported master port class: A / B.
Reverse polarity protection: Yes (master side)
Delay time acyclic data: Up to 2 cycles; (per repeater)
Delay time for process data: Up to 1 cycle; (per repeater)
