Buy ifm Electronic E30446 Adapter

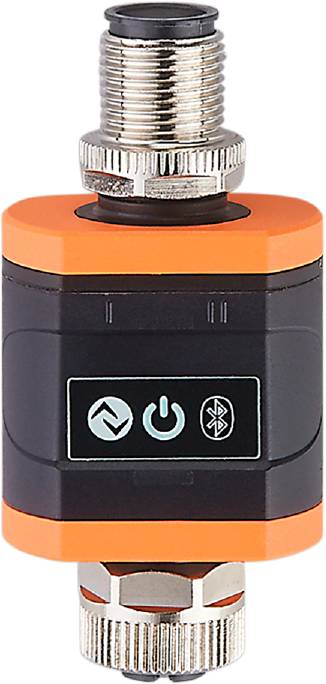

Image similar

Product type

Adapter

Manufacturer part #

E30446

Content

1 pc(s)

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Display: Operation: 1 x LED, green; IO-Link: 1 x LED, yellow; Bluetooth: 1 x LED, blue
IO-Link Revision - IO-Link Device: 1.0; 1.1
SDCI standard - IO-Link device IEC 61131-9
Transmission type - IO-Link Device: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Required master port class - IO-Link Device: A.
Special feature: Gold-plated contacts
Operating voltage [V]: 18... 30 DC
Bluetooth 2.4 - 2.482 GHZ
Radio approval for: USA; Canada; EU/RED; Australia; Japan; Namibia; Brazil; China; India; Singapore; Mexico; South Africa; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; Indonesia
Weight [g]: 88,500
Communication interface: IO-Link; Bluetooth
Storage temperature [°C]: -25...70
MTTF: 285
Rated voltage DC [V]: 24
Parameterization options: Process value recording
Range - Bluetooth: Typical 20 m
IP 67 protection
Protection class III
Bluetooth power [mW]: 10; (10 dBm)
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; contacts: Gold-plated / 2.Can - Pin layout: 0002 - Connector: 1 x M12; Coding: A; contacts: Gold-plated
Power consumption: 30...830 (24 V DC, full load)
Transmission standard - Bluetooth: BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1
Reverse polarity protection: Yes
