ifm Electronic E30464 Adapter E30464 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E30464
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

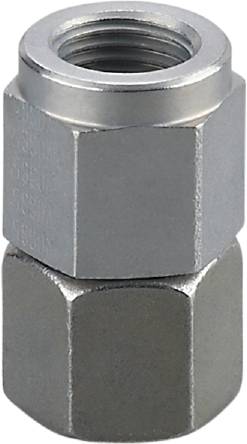

Ifm E30464 screw-in adapter
- Suitable for pipe and block mounting
- High compressive strength
- Corrosion-resistant Zn-Ni coating
Our service for you
Technical specifications
- Sealing: Sealing edge ring
- Application: Oil-hydraulic applications; enables the sensor to be rotated
- Compressive strength [bar]: 630
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 61,000
- Mounting: For pipe mounting; for block mounting; (for pipe mounting M16 x 1.5 pipe adapter necessary; for block mounting additional screw-in adapter required)
- Process connection: Threaded connection M16 x 1.5 internal thread Sealing cone:S8
- Sensor connection G 1/4 outer thread
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E30464
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3316353 ifm Electronic E30464 Adapter E30464 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316353 ifm Electronic E30464 Adapter E30464 1 pc(s)
Description
Ifm E30464 screw-in adapter
