ifm Electronic E33402 Adapter E33402 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E33402
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

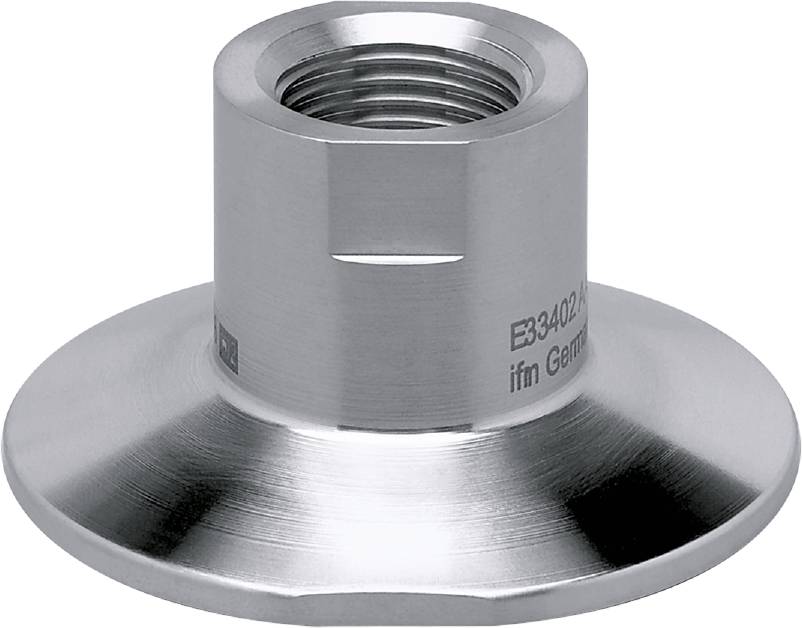

Ifm E33402 terminal adapter
- For the installation of process sensors in containers or pipes
- Simple, fast and secure mounting
- Particularly suitable for use in hygienic applications
- Adapter made of stainless steel for the requirements of the food and beverage industry
- High compressive strength
Technical specifications
- Compressive strength [bar]: 16
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 269,000
- MAWP for applications according to CRN [bar]: 16
- Surface texture Ra/Rz of surfaces in contact with the media: 0.4 / 4
- Process connection: Clamp DN50 (2") DIN 32676 (ISO 2852)
- G 1/2 sealing cone. Sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E33402
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317640 ifm Electronic E33402 Adapter E33402 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317640 ifm Electronic E33402 Adapter E33402 1 pc(s)
Description
Ifm E33402 terminal adapter
