Name: ifm Electronic E33601 Adapter E33601 1 pc(s)
Brand: ifm Electronic
SKU: 3318395

Image similar

Product type

Adapter

Type

E33601

Content

1 pc(s)

UKCA

not relevant

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

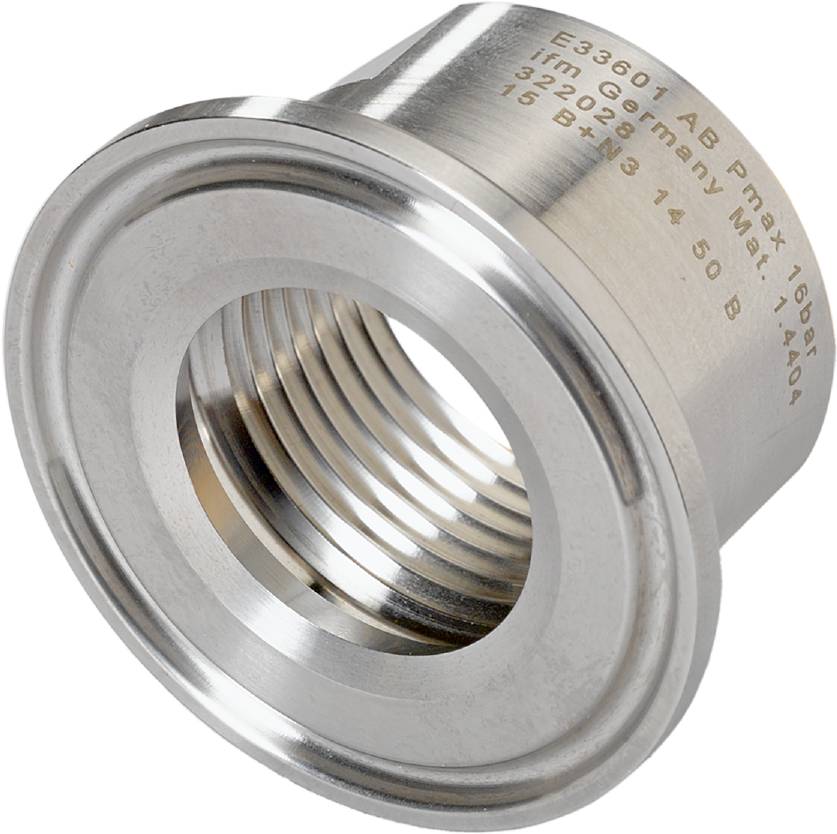

Ifm E33601 terminal adapter

For the installation of process sensors in containers or pipes
Simple, fast and secure mounting
Particularly suitable for use in hygienic applications
Adapter made of stainless steel for the requirements of the food and beverage industry
High compressive strength

Compressive strength [bar]: 16
Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
Weight [g]: 140,000
Standard DIN 11866: H4
MAWP for applications according to CRN [bar]: 16
Process connection: Clamp DN25...DN40 (1...1.5") DIN 32676 (ISO 2852)
G 1 sealing cone. Sensor connection
Safety instructions: The compatibility between Medium and product material must be checked in all applications.
Materials in contact with the Medium: 1.4404 (stainless steel / 316L) ; Surface finish : Ra<0.4 / Rz 4
