ifm Electronic E37210 Protective tube E37210 1 pc(s)
EAN:
Part number:
Item no:
Product type
Protective tube
Type
E37210
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

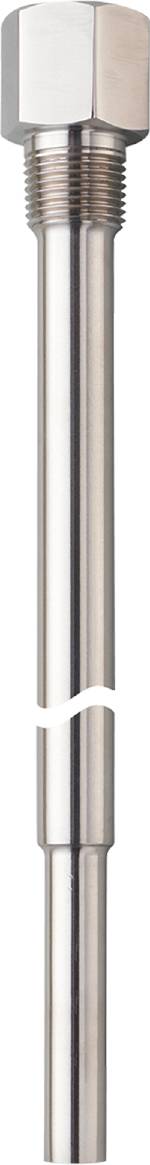

Ifm E37210 protective tube for temperature sensors
- Reliable protection against aggressive media and high flow rates
- Allows the temperature sensor to be replaced during the process
- Particularly high compressive strength
- Simple process connection using an adapter
- Robust stainless steel housing for the requirements of harsh industrial ambient
Technical specifications
- Design: For temperature sensors EL = 100 mm
- Hole length BL [mm]: 101.6
- Compressive strength [bar]: 400
- Mounting length EL [mm]: 74
- Weight [g]: 180,500
- Max. Permissible flow velocity [m/s]: 45
- Process connection: 1/2" NPT
- 1/2" NPS Ø 6 mm suitable for G 1/2 and 1/2" NPT
- Product type
Protective tube
- Type
E37210
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317627 ifm Electronic E37210 Protective tube E37210 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317627 ifm Electronic E37210 Protective tube E37210 1 pc(s)
Description
Ifm E37210 protective tube for temperature sensors
