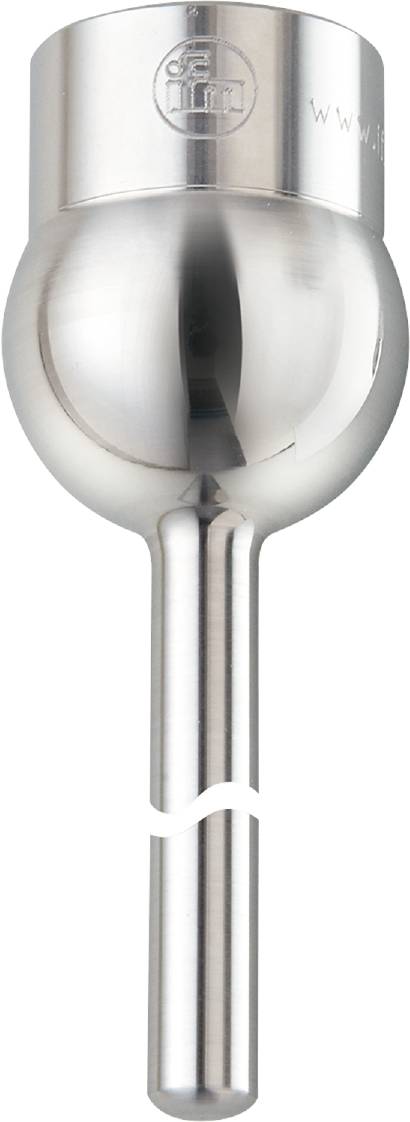

ifm Electronic E37431 Welded protective tube E37431 1 pc(s)
EAN:
Part number:
Item no:
Product type
Welded protective tube
Type
E37431
Content
1 pc(s)
Max. operating pressure
300 bar
Enclosure material
Stainless steel V4A
Datasheet (PDF)
Highlights & Details
Ifm E37431 welding protection tube for temperature sensors
- Reliable protection against aggressive media and high flow rates
- Allows the temperature sensor to be replaced during the process
- Particularly high compressive strength
- Hygienic design for the requirements of the food and beverage industry
- Robust stainless steel housing for use in harsh industrial environments
Technical specifications
- Design: For temperature sensors EL = 150 mm
- Hole length BL [mm]: 187
- Compressive strength [bar]: 300
- Mounting length EL [mm]: 149
- Weight [g]: 184,700
- Surface properties Ra/Rz of surfaces in contact with the media: ≤ 0.6 / -
- Process connection: Welding adapter Ø 34 mm
- G 1/2 sealing cone Ø 6 mm
- Product type
Welded protective tube
- Type
E37431
- Content
1 pc(s)
- Max. operating pressure
300 bar
- Enclosure material
Stainless steel V4A
- Weight
0.1800 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318909 ifm Electronic E37431 Welded protective tube E37431 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318909 ifm Electronic E37431 Welded protective tube E37431 1 pc(s)
Description
Ifm E37431 welding protection tube for temperature sensors
