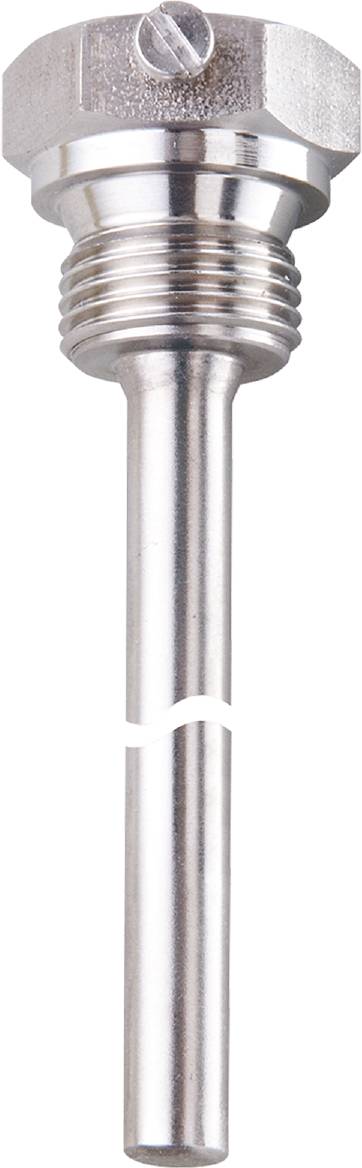

ifm Electronic E37643 Protective tube E37643 1 pc(s)
EAN:
Part number:
Item no:
Product type
Protective tube
Type
E37643
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm E37643 protective tube for temperature sensors
- Reliable protection against aggressive media and high flow rates
- Allows the temperature sensor to be replaced during the process
- High compressive strength
- Simple process connection using an adapter
- Robust stainless steel housing for the requirements of harsh industrial ambient
Technical specifications
- Design: For temperature sensors EL = 250 mm
- Hole length BL [mm]: 245
- Compressive strength [bar]: 100
- Mounting length EL [mm]: 233
- Weight [g]: 136,500
- Process connection G 1/2
- Sensor connection Ø 6 mm
- Product type
Protective tube
- Type
E37643
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317817 ifm Electronic E37643 Protective tube E37643 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317817 ifm Electronic E37643 Protective tube E37643 1 pc(s)
Description
Ifm E37643 protective tube for temperature sensors
