ifm Electronic E38515 Protective tube E38515 1 pc(s)
EAN:
Part number:
Item no:
Product type
Protective tube
Type
E38515
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

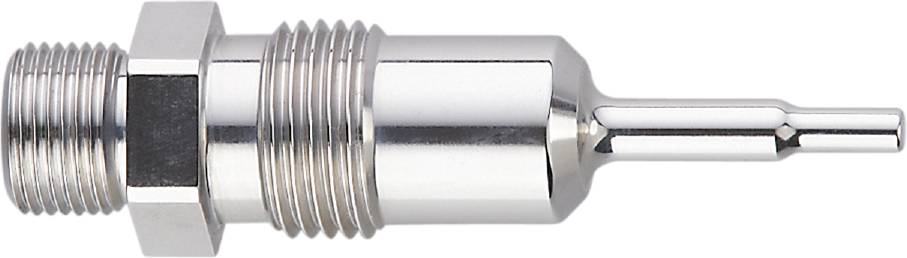

Ifm E38515 protective tube for temperature sensors
- Reliable protection against aggressive media and high flow rates
- Allows the temperature sensor to be replaced during the process
- High compressive strength
- Simple process connection using an adapter
- Hygienic design for the requirements of the food and beverage industry
Technical specifications
- Tightening torque [Nm]: 20
- Design: For temperature sensors EL = 83 mm
- Hole length BL [mm]: 83
- Compressive strength [bar]: 16
- Mounting length EL [mm]: 30
- Weight [g]: 97,000
- Surface properties Ra/Rz of surfaces in contact with the media: < 0.4 / -
- Process connection G 1/2
- G 3/8 internal thread Ø 3 mm sensor connection
- Product type
Protective tube
- Type
E38515
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319968 ifm Electronic E38515 Protective tube E38515 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319968 ifm Electronic E38515 Protective tube E38515 1 pc(s)
Description
Ifm E38515 protective tube for temperature sensors
