ifm Electronic E40082 Cutting ring fitting E40082 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cutting ring fitting
Type
E40082
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

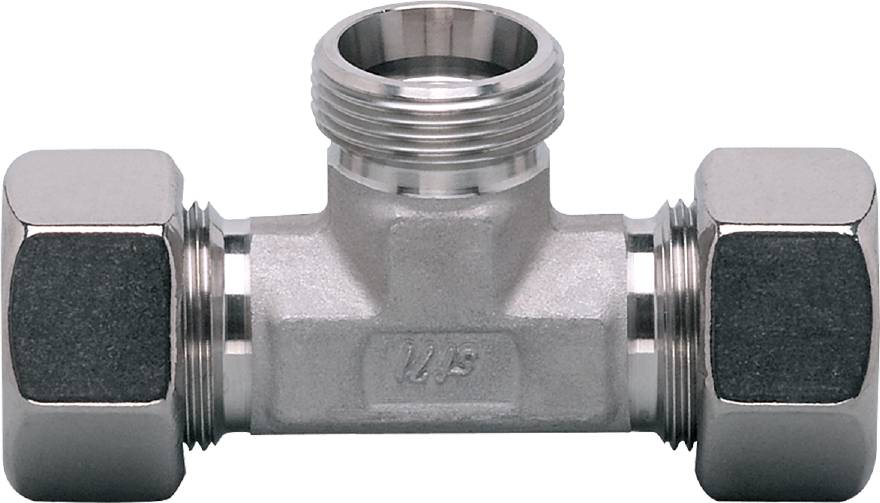

Ifm E40082 Cutting ring T-connector DIN 2353
- Safe installation of process sensors in pipes
- For use in industrial applications
- High compressive strength
Our service for you
Technical specifications
- Application: For industrial use
- Design: For sensors and adapters with process connection M26x1.5
- Compressive strength [bar]: 160
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 378,200
- Media: Liquid and gaseous media
- Mounting type: Recommendation: Precision steel tube 22 x 1.5 DIN 2391/ISO 3304
- Process connection: Ø 22 mm
- M26 x 1.5 sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Cutting ring fitting
- Type
E40082
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319221 ifm Electronic E40082 Cutting ring fitting E40082 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319221 ifm Electronic E40082 Cutting ring fitting E40082 1 pc(s)
Description
Ifm E40082 Cutting ring T-connector DIN 2353
